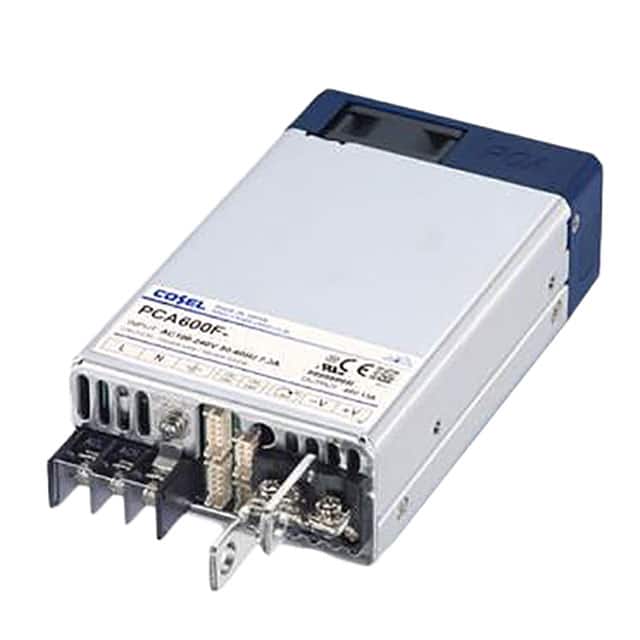

The Cosel PCA600F-48-P2 is an enclosed AC/DC converter designed for high-reliability applications. It delivers 624W of power with a 48V output voltage and a 13A current rating. The unit features a universal input voltage range of 85-264 VAC and a DC input range of 88-370 VDC.
Key features include adjustable output, power factor correction (PFC), remote on/off control, and remote sense capabilities. Its low profile design (41mm height) meets 1U height requirements, making it suitable for space-constrained applications. The converter is built for demanding environments, operating between -20°C and 70°C.
This model is approved by CE, CSA, cURus, D-Mark, and UL, and complies with standards such as 60601-1, 60950-1, and 62368-1. It is also certified for medical isolation grade 2MOPP. The enclosed type and chassis mount design ensure robust integration into various systems.
Additional functionalities include an auxiliary 12V 0.1A output, constant current capability, and the ability to adjust output voltage near 0V. It supports parallel operation for N+1 redundancy and includes various alarms and monitoring functions accessible via communication interfaces.
The Cosel PCA600F-48-P2 is an enclosed AC/DC converter.
The PCA600F-48-P2 is a chassis mount type.
The operating temperature range is -20°C to 70°C.
The PCA600F-48-P2 is approved by CE, CSA, cURus, D-Mark, and UL, and complies with standards 60601-1, 60950-1, and 62368-1.
Yes, it features a low profile design of 41mm (1.61 inch), meeting 1U height requirements.
The medical isolation grade is 2MOPP.
Yes, it supports N+1 parallel redundancy operation.
