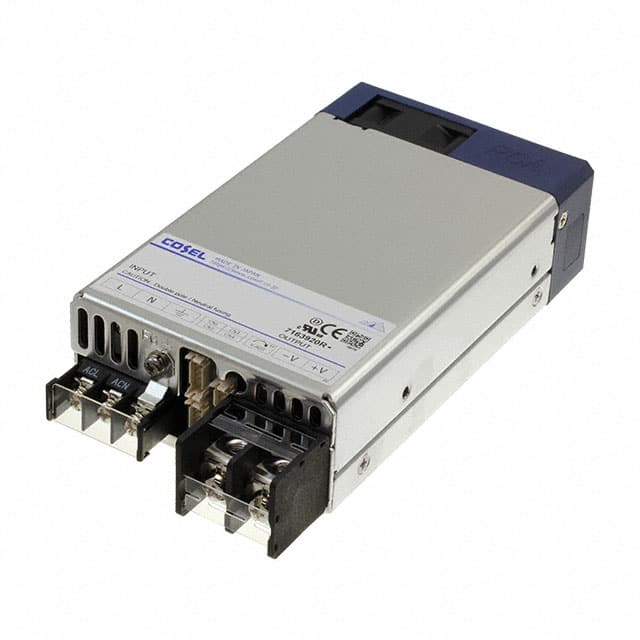

The Cosel PCA600F-32-TP2 is an enclosed AC/DC power supply designed for high reliability and performance. It offers a universal input voltage range of 85-264 VAC and a DC input range of 88-370 VDC.
This converter delivers a 32V output voltage at up to 20A, providing a maximum power of 640W. Key electrical features include Power Factor Correction (PFC), adjustable output voltage, remote on/off, and remote sense capabilities. It operates efficiently with a typical efficiency of 86-88% at 100V AC input.
Designed for demanding environments, the PCA600F-32-TP2 operates within a temperature range of -20°C to 70°C. It meets stringent safety and compliance standards, including UL62368-1, EN62368-1, and ANSI/AAMI ES60601-1, making it suitable for ITE (Commercial) and Medical applications. The unit provides 4kV isolation voltage and meets medical isolation grade 2MOPP.
With a low profile design (41mm height), it meets 1U height requirements. Mounting is via chassis mount. The unit also supports parallel operation for N+1 redundancy and includes various alarms and monitoring functions.
The output voltage is 32V.
The maximum output current is 20A.
The power rating is 640W.
The operating temperature range is -20°C to 70°C.
Yes, it is designed for medical electric equipment and meets Medical Isolation Grade 2MOPP, ANSI/AAMI ES60601-1, and EN60601-1 3rd standards.
The dimensions are 152.0mm x 89.0mm x 41.0mm (5.98" L x 3.50" W x 1.61" H).
Yes, it supports N+1 parallel redundancy operation.
