| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

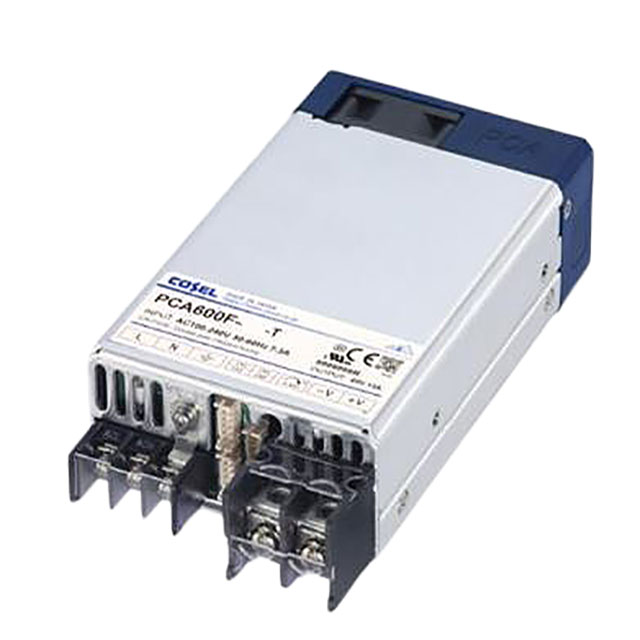

The Cosel PCA600F-32-T is an enclosed AC/DC converter designed for demanding applications. It offers a 32V output voltage and a maximum power of 640W, with an input voltage range of 85-264 VAC and 88-370 VDC. This unit is chassis mountable and features adjustable output, PFC, remote ON/OFF, and remote sense capabilities.
Designed for versatility, the PCA600F-32-T is suitable for ITE (Commercial) and Medical applications, adhering to standards such as 60601-1 and 62368-1. Its compact dimensions (152.0mm x 89.0mm x 41.0mm) and low profile design make it ideal for space-constrained environments, meeting 1U height requirements.
Key features include high efficiency up to 93%, a wide operating temperature range of -20°C to 70°C, and various safety agency approvals including CE, CSA, cURus, D-Mark, and UL. The converter also supports parallel operation and N+1 redundancy.
The Cosel PCA600F-32-T has an output voltage of 32V.
The PCA600F-32-T provides a maximum power output of 640W.
The input voltage range for the PCA600F-32-T is 85-264 VAC.
The operating temperature range for the PCA600F-32-T is -20°C to 70°C.
The PCA600F-32-T uses chassis mount.
Key features include adjustable output, PFC, remote ON/OFF, remote sense, and universal input.
The PCA600F-32-T is suitable for ITE (Commercial) and Medical applications.
