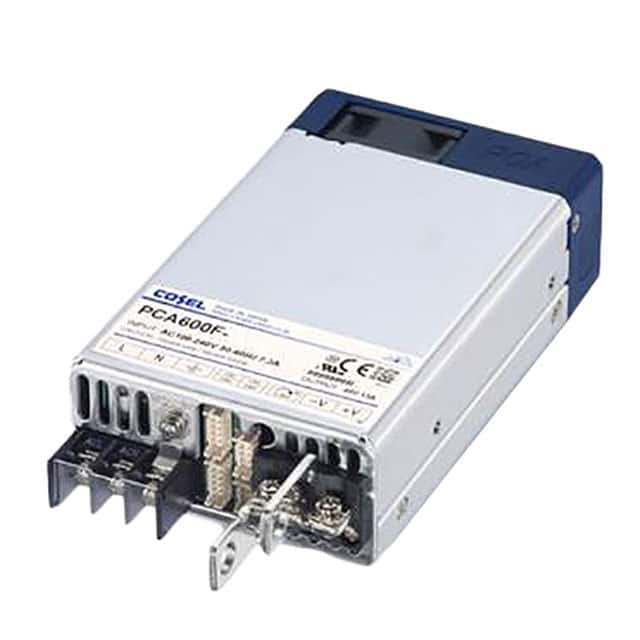

The Cosel PCA600F-32-P2 is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It offers a robust 640W of power with a 32V output voltage and a maximum current of 20A.
Key electrical specifications include a universal input voltage range of 85-264 VAC, high efficiency up to 93%, and an isolation voltage of 4 kV. The converter supports features such as adjustable output voltage, power factor correction (PFC), remote on/off control, and remote sense capabilities.
Designed for versatility, it operates within a temperature range of -20°C to 70°C and meets various safety agency approvals including CE, CSA, cURus, D-Mark, and UL. The unit is compliant with standards like 60601-1, 60950-1, and 62368-1. Its low profile design, measuring 152.0mm x 89.0mm x 41.0mm, makes it suitable for applications with space constraints, and it features a chassis mount type.
Additional features include constant current function, adjustable output voltage to near 0V, and support for parallel operation or N+1 redundancy. It also provides various alarms and allows for monitoring and setting changes via communication.
The output voltage is 32V.
The maximum output current is 20A.
The power rating is 640W.
The operating temperature range is -20°C to 70°C.
Key features include adjustable output, PFC, remote on/off, remote sense, and universal input.
It complies with UL62368-1, C-UL (CSA62368-1), EN62368-1, ANSI/AAMI ES60601-1, and EN60601-1 3rd.
It supports chassis mount.
