| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

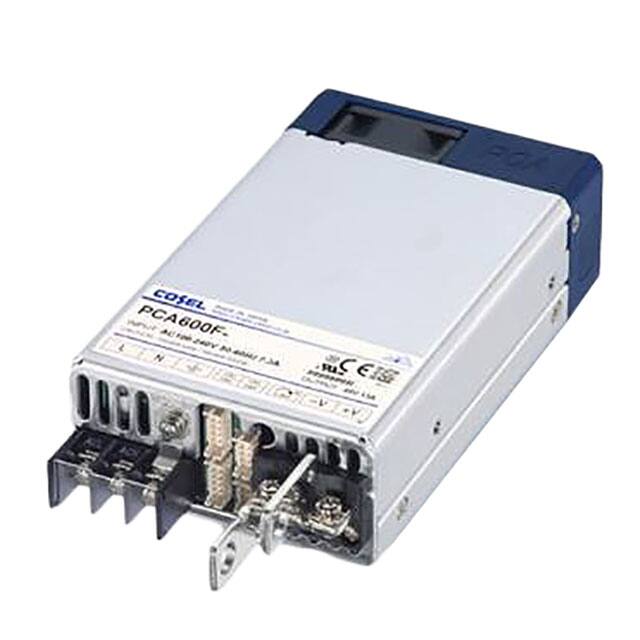

The Cosel PCA600F-32 is a high-performance AC DC converter designed for demanding applications. It provides a stable 32V output with a maximum power of 640W, suitable for various industrial and medical equipment.
This converter features a universal input voltage range of 85-264 VAC and can also accept DC input from 88-370 VDC. Key electrical features include adjustable output, Power Factor Correction (PFC), remote on/off control, and remote sense capabilities. It is designed for chassis mounting, offering a low profile of 41mm to meet 1U height requirements.
The PCA600F-32 complies with essential safety and EMI standards, including UL62368-1, EN62368-1, and FCC-B, CISPR32-B. It is also rated for medical equipment applications with a 2MOPP isolation grade. The operating temperature range is -20°C to 70°C, with derating possible at higher temperatures.
Additional functionalities include an auxiliary 12V 0.1A output and the possibility of parallel operation for N+1 redundancy. This makes the PCA600F-32 a reliable and flexible power solution for commercial and medical ITE applications.
The output voltage is 32V.
The maximum output current is 20A.
The power rating is 640W.
The operating temperature range is -20°C to 70°C.
Key features include adjustable output, PFC, remote on/off, remote sense, and universal input.
It complies with 60601-1, 60950-1, and 62368-1 standards.
Yes, it is designed for medical electric equipment and has a 2MOPP isolation grade.
