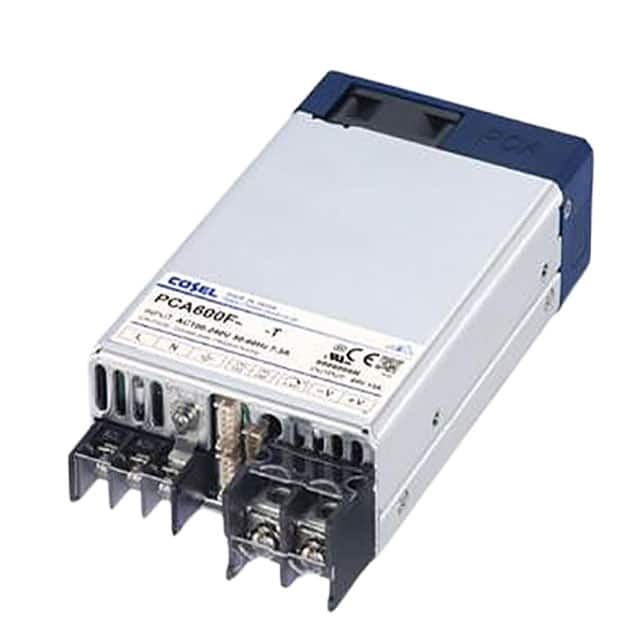

The Cosel PCA600F-24-T is an enclosed AC/DC power supply designed for industrial and medical applications. It offers a universal input voltage range of 85-264 VAC and a DC input range of 88-370 VDC. This model provides a stable 24V output with a maximum current of 27A, resulting in a total output power of 648W.
Key features include adjustable output voltage, Power Factor Correction (PFC), remote on/off, and remote sense capabilities. The unit is designed for chassis mounting and has a low profile, meeting 1U height requirements. Its operating temperature range is -20°C to 70°C, making it suitable for various environmental conditions.
Safety and compliance are addressed with approvals from CE, CSA, cURus, D-Mark, and UL, and it meets standards such as 60601-1, 60950-1, and 62368-1. The converter also includes an auxiliary 12V 0.1A output and supports parallel operation for redundancy.
With its robust design and comprehensive features, the PCA600F-24-T is well-suited for demanding ITE (Commercial) and Medical equipment applications requiring reliable power conversion.
The Cosel PCA600F-24-T has a nominal output voltage of 24V.
The maximum output power for the PCA600F-24-T is 648W.
The PCA600F-24-T accepts a universal input voltage range of 85-264 VAC.
The operating temperature range for the PCA600F-24-T is -20°C to 70°C.
Yes, the PCA600F-24-T supports parallel operation, including N+1 redundancy.
The PCA600F-24-T meets safety standards including 60601-1, 60950-1, and 62368-1.
