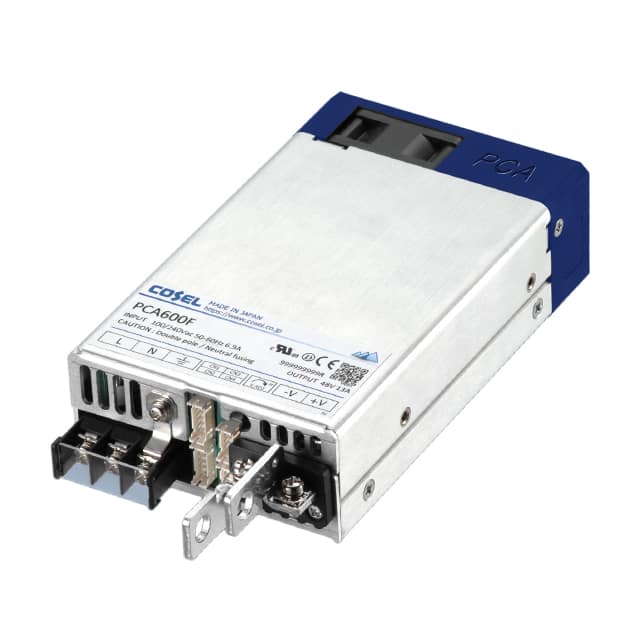

The Cosel PCA600F-24 is an enclosed AC/DC power supply designed for versatility and reliability. It offers a universal input voltage range of 85-264VAC and a DC input range of 88-370VDC, making it suitable for global applications.
This converter provides a 24V output with a maximum current of 14A, delivering up to 648W of power. Key electrical features include Power Factor Correction (PFC), an adjustable output voltage, and an auxiliary 12V output. It also supports remote ON/OFF control and remote sense functionality.
Designed for demanding environments, the PCA600F-24 operates within a temperature range of -20°C to 70°C. Its mechanical dimensions are 152.0mm x 89.0mm x 41.0mm, with a low profile height of 41mm that meets 1U height requirements. The unit is chassis mountable.
Compliance and safety certifications include CE, CSA, cURus, D-Mark, and UL, with adherence to standards such as 60601-1, 60950-1, and 62368-1. It also meets EMI standards like FCC-B and CISPR32-B, and EMS compliance with EN61000 series. The unit is rated for Medical Isolation Grade 2MOPP, making it suitable for medical equipment.
The output voltage is 24V.
The maximum output current is 14A.
The total power output is 648W.
The operating temperature range is -20°C to 70°C.
The dimensions are 152.0mm x 89.0mm x 41.0mm.
Yes, it has Medical Isolation Grade 2MOPP.
It is approved by CE, CSA, cURus, D-Mark, and UL.
