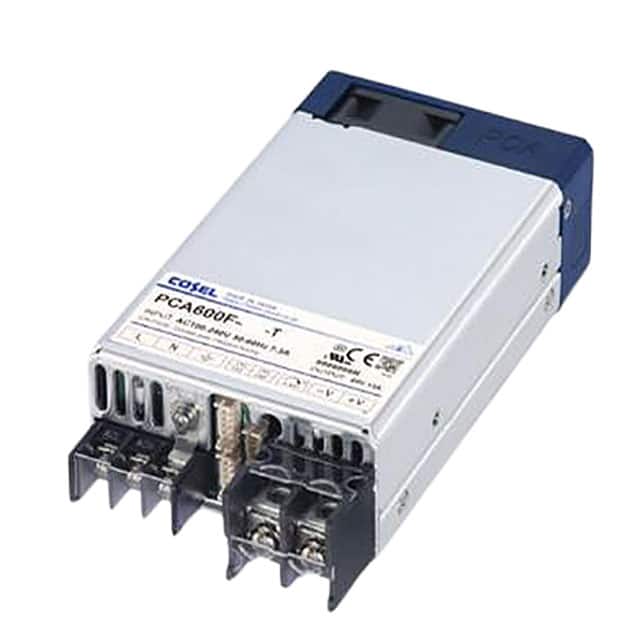

The Cosel PCA600F-15-T is an enclosed AC/DC power supply designed for versatile applications, including ITE (Commercial) and Medical equipment. It offers a robust 645W output power with a nominal voltage of 15V and a current rating of 22A.
Key electrical specifications include a universal input voltage range of 85-264 VAC, with an efficiency rating of up to 88% at full load. The unit incorporates features such as Power Factor Correction (PFC), adjustable output voltage, remote on/off control, and remote sense capabilities. It also provides an auxiliary 12V output at 0.1A.
Designed for reliability, the PCA600F-15-T operates within an ambient temperature range of -20°C to 70°C. Its physical dimensions are 152.0mm x 89.0mm x 41.0mm, making it suitable for chassis mounting. The power supply meets various safety and compliance standards, including UL62368-1, EN62368-1, ANSI/AAMI ES60601-1, and EN60601-1 3rd edition, and offers 2MOPP medical isolation.
EMI compliance includes FCC-B, CISPR32-B, and EN55032-B, ensuring electromagnetic compatibility in various environments. The unit is RoHS3 compliant and has an MSL of 1.
The input voltage range is 85-264 VAC or 88-370 VDC.
The output is 15V at 22A, providing 330W.
The operating temperature range is -20°C to 70°C.
It is an enclosed chassis-mount package.
Isolation voltage is 4 kV.
Yes, it meets medical isolation grade 2MOPP and is certified to 60601-1, 60950-1, and 62368-1.
It complies with FCC-B, CISPR32-B, EN55011-B, EN55032-B, and VCCI-B.
