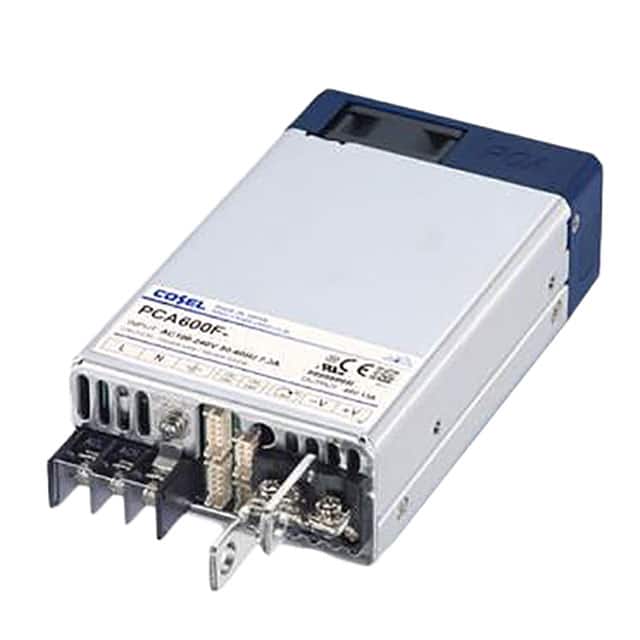

The Cosel PCA600F-15 is an enclosed AC/DC power supply designed for industrial and medical applications. It delivers 645W of power with a 15V output voltage and a maximum current of 43A.
Key electrical specifications include a universal input voltage range of 85-264 VAC and a DC input range of 88-370 VDC. The converter boasts high efficiency, up to 92% typical, and features like adjustable output, power factor correction (PFC), remote on/off, and remote sense capabilities. It operates within a temperature range of -20°C to 70°C and provides 4kV isolation voltage.
Designed for reliability and safety, the PCA600F-15 meets medical isolation standards (2MOPP) and complies with various EMI/EMS standards including FCC-B, CISPR32-B, and EN61000-6-2. It is built to standard safety certifications such as CE, CSA, cURus, D-Mark, and UL, and adheres to safety standards like 60601-1, 60950-1, and 62368-1.
The unit is housed in an enclosed chassis mount package with dimensions of 152.0mm x 89.0mm x 41.0mm, making it suitable for integration into various equipment designs.
The output voltage is 15V.
The maximum output current is 43A.
The power rating is 645W.
The input voltage range is 85-264 VAC.
The operating temperature range is -20°C to 70°C.
It complies with 60601-1, 60950-1, and 62368-1 safety standards.
The isolation voltage is 4 kV.
