| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

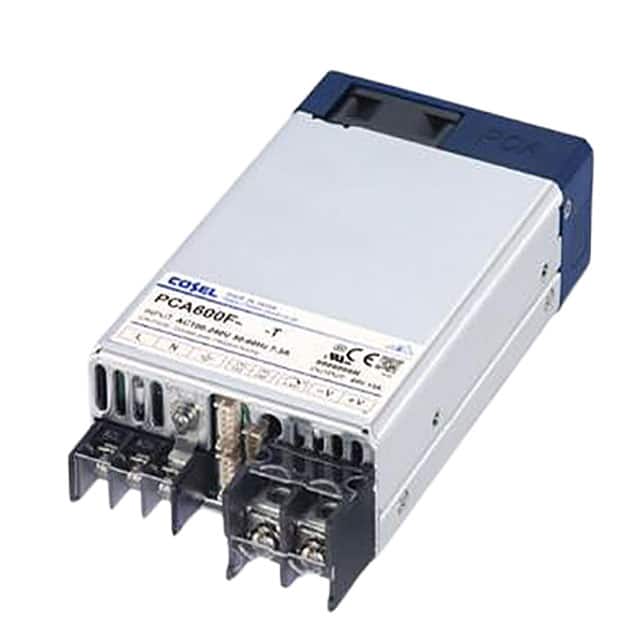

The Cosel PCA600F-12-T is a versatile AC/DC power supply designed for demanding applications. This enclosed converter operates with a universal input voltage range of 85-264 VAC or 88-370 VDC, providing a stable 12V output at up to 53A, for a total power of 636W.
Key features include adjustable output voltage, Power Factor Correction (PFC), remote on/off control, and remote sense capabilities. Its compact dimensions (152.0mm x 89.0mm x 41.0mm) and chassis mount design make it suitable for integration into various systems.
The PCA600F-12-T is built to meet stringent safety and performance standards, including CE, CSA, cURus, D-Mark, and UL approvals. It is designed for applications in ITE (Commercial) and Medical fields, offering an isolation voltage of 4 kV and an operating temperature range of -20°C to 70°C. Compliance with standards like 60601-1, 60950-1, and 62368-1 underscores its suitability for critical equipment.
The output voltage is 12V.
The maximum output current is 53A.
The power rating is 636W.
The input voltage range is 85 - 264 VAC.
The operating temperature range is -20°C to 70°C.
It complies with 60601-1, 60950-1, and 62368-1 standards.
The isolation voltage rating is 4 kV.
