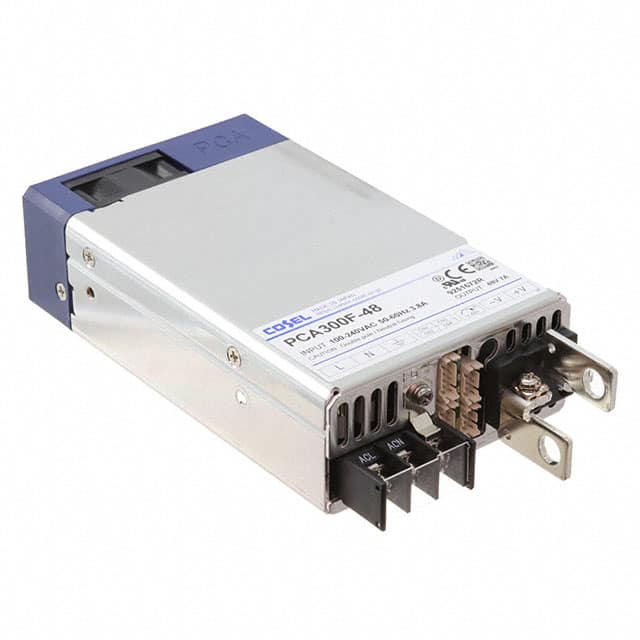

The Cosel PCA300F-48 is an enclosed AC DC converter designed for reliable power conversion. It operates with a universal input voltage range of 85-264 VAC, providing a stable 48VDC output at up to 7A, delivering a total of 336W. This model features adjustable output, power factor correction (PFC), remote on/off control, and remote sense capabilities, enhancing its flexibility in various applications.
With a compact chassis mount design, the PCA300F-48 measures 152.0mm x 89.0mm x 41.0mm. It offers an isolation voltage of 4kV and operates within a temperature range of -20°C to 70°C. The converter is suitable for ITE (Commercial) and Medical applications, adhering to standards such as 60601-1, 60950-1, and 62368-1. Its efficiency is rated at 91% typical.
Compliance includes RoHS3, REACH Unaffected, and an MSL of 1 Unlimited. The unit is approved by CE, CSA, cURus, and D-Mark agencies, ensuring safety and reliability for demanding industrial and medical environments.
The input voltage range is 85-264 VAC.
The output is 48 VDC at 7 A (336 W).
-20°C to 70°C.
Enclosed, chassis mount. Dimensions 152.0 x 89.0 x 41.0 mm.
IEC 60601-1 (medical), IEC 60950-1 (IT equipment), and IEC 62368-1 (audio/video/ICT).
Yes, active PFC is included.
4 kV.
