PCA300F-15-F2
Cosel

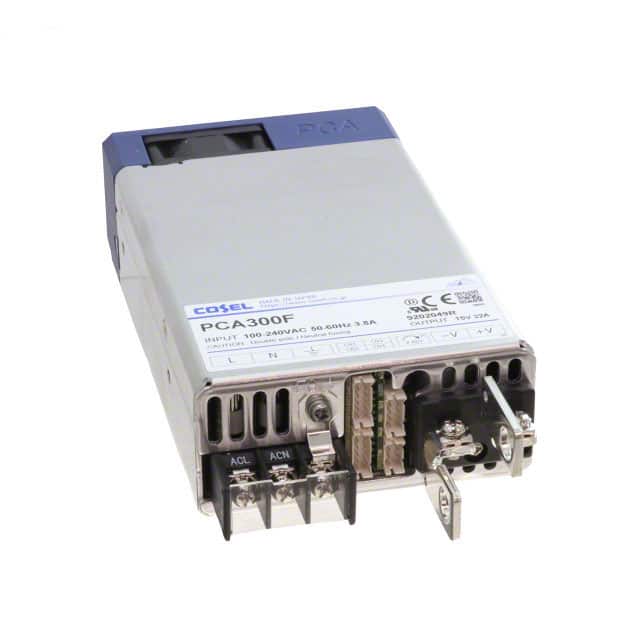

The Cosel PCA300F-15-F2 is an enclosed AC/DC converter with a 15V, 330W output. It features universal input voltage and adjustable output.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
The Cosel PCA300F-15 is a versatile AC/DC power supply designed for various applications, including ITE (Commercial) and Medical equipment. This enclosed unit offers a single 15V output with a maximum current of 22A, delivering a total power of 330W.
Key electrical specifications include a universal input voltage range of 85-264 VAC and a DC input range of 88-370 VDC. It boasts high efficiency, rated up to 90%, and features like adjustable output, power factor correction (PFC), remote ON/OFF control, and remote sense capabilities. The unit is designed for chassis mounting and has a low profile, measuring 152.0mm x 89.0mm x 41.0mm.
Safety and compliance are addressed with approvals from CE, CSA, cURus, D-Mark, and UL, and it meets standards such as 60601-1, 60950-1, and 62368-1. The operating temperature range is -20°C to 70°C. The PCA300F-15 is suitable for applications requiring reliable and efficient power conversion.
The PCA300F-15 accepts 85-264 VAC or 88-370 VDC input.
The output is 15V at 22A, providing 330W of power.
The operating temperature range is -20°C to 70°C.
The isolation voltage is 4 kV.
Typical efficiency is 87% at full load (100% load) and 86% at 50% load.
It is chassis mountable with an enclosed package.
It complies with 60601-1, 60950-1, and 62368-1.
