| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

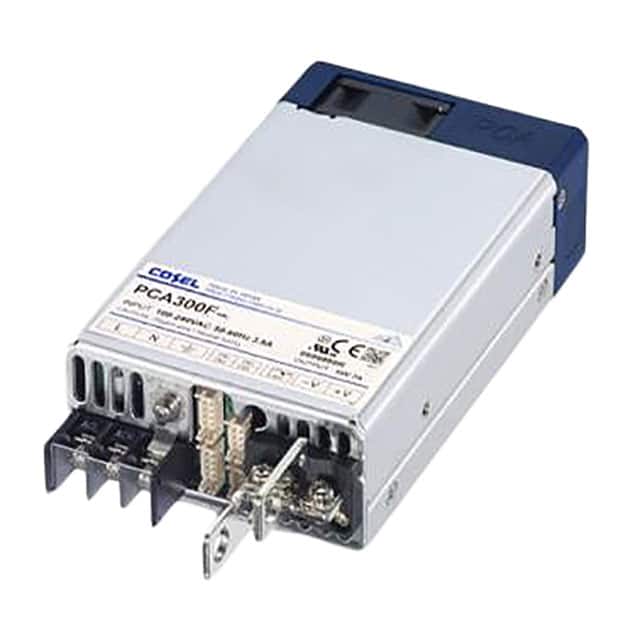

The Cosel PCA300F-12 is a versatile enclosed AC/DC power supply designed for demanding applications. It offers a robust 324W output power at 12V, with an adjustable output voltage capability.
This unit accepts a universal input voltage range of 85-264 VAC, making it suitable for global use. Key features include power factor correction (PFC), remote on/off control, and remote sense functionality. The PCA300F-12 is designed for chassis mounting and meets a 1U height requirement, measuring 152.0mm x 89.0mm x 41.0mm.
It is engineered for reliability and safety, with an isolation voltage of 4kV and operating temperatures from -20°C to 70°C. Compliance with standards such as CE, CSA, cURus, D-Mark, and UL, along with EMI/EMS certifications, ensures suitability for ITE (Commercial) and Medical applications. The power supply also supports parallel operation for redundancy.
The Cosel PCA300F-12 provides a 12V output voltage.
The PCA300F-12 has a maximum output power of 324W.
The PCA300F-12 accepts a universal input voltage range of 85-264 VAC.
The dimensions of the PCA300F-12 are 152.0mm x 89.0mm x 41.0mm.
The PCA300F-12 operates within a temperature range of -20°C to 70°C.
The PCA300F-12 complies with CE, CSA, cURus, D-Mark, and UL standards.
Yes, the PCA300F-12 supports N+1 parallel redundancy operation.
