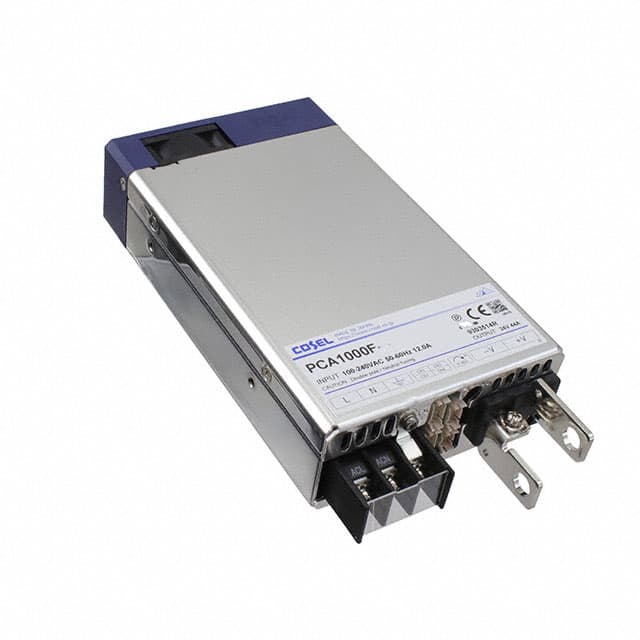

The Cosel PCA1000F-48 is an enclosed AC DC power supply designed for demanding applications. It provides a stable 48V DC output at up to 22A, with a maximum power rating of 1056W. The unit accepts a universal input voltage range of 85-264 VAC, making it suitable for global use.
Key electrical features include an efficiency of 93% and integrated Power Factor Correction (PFC). It also offers adjustable output voltage, remote on/off control, and remote sense capabilities, providing flexibility in system integration. The operating temperature range is -20°C to 70°C.
With dimensions of 178.0mm x 102.0mm x 41.0mm, this power supply is designed for chassis mounting. It meets various safety standards including 60601-1, 60950-1, and 62368-1, and carries CE, CSA, cURus, D-Mark, and UL approval agency certifications. The PCA1000F-48 is suitable for ITE (Commercial) and Medical applications.
The output voltage is 48 VDC and the output current is 22 A.
The input voltage range is 85-264 VAC.
The operating temperature range is -20°C to 70°C.
The typical efficiency is 93%.
It complies with standards 60601-1, 60950-1, and 62368-1.
The isolation voltage is 4 kV.
The dimensions are 178.0mm (length) x 102.0mm (width) x 41.0mm (height).
