PCA1000F-32-T
Cosel

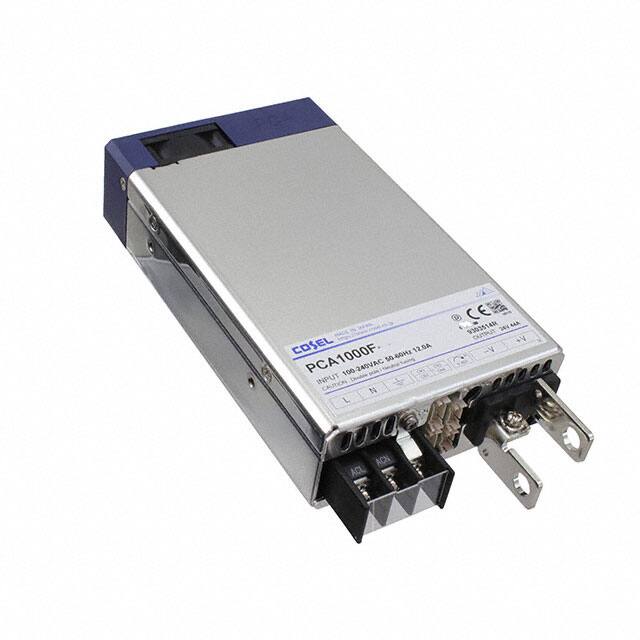

The Cosel PCA1000F-32-T is a 1056W enclosed AC DC converter with a 32V output voltage. It offers 93% efficiency and universal input capabilities.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
The Cosel PCA1000F-32 is a high-performance AC DC converter designed for demanding applications. It offers a robust 32V output voltage with a maximum current of 33A, delivering a total power of 1056W. The unit accepts a universal input voltage range of 85-264 VAC, making it suitable for global use.
Key electrical features include an impressive 93% efficiency and Power Factor Correction (PFC). For enhanced control and system integration, it incorporates Remote On/Off, Remote Sense, and an auxiliary 12V 0.1A output. The converter also supports a DC input range of 88-370 VDC.
Designed for versatility, the PCA1000F-32 is suitable for ITE (Commercial) and Medical applications, with a medical isolation grade of 2MOPP. It complies with various safety standards including 60601-1, 60950-1, and 62368-1, and holds approvals from CE, CSA, cURus, D-Mark, and UL.
Mechanically, this enclosed converter features a chassis mount design with dimensions of 178.0mm x 102.0mm x 41.0mm, meeting 1U height requirements. Its operating temperature range is -20°C to 70°C.
The output voltage is 32V.
The maximum output current is 33A.
The power rating is 1056W.
It accepts a universal input voltage range of 85-264 VAC.
The efficiency is 93%.
The operating temperature range is -20°C to 70°C.
It complies with 60601-1, 60950-1, and 62368-1 safety standards.
