| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

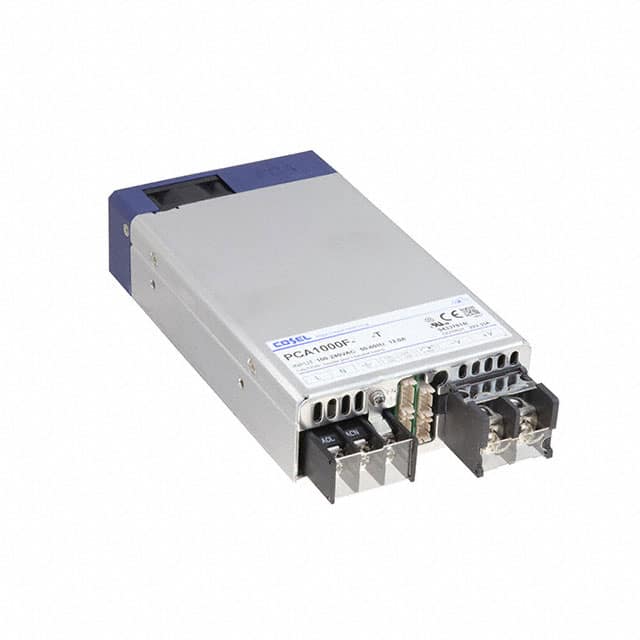

The Cosel PCA1000F-24-T is an enclosed AC/DC power supply designed for demanding applications. It offers a robust 1056W output power with a nominal voltage of 24V and a current rating of 44A.
This converter supports a universal input voltage range of 85-264 VAC, making it suitable for global use. Key electrical features include high efficiency up to 88% at ACIN 100V (Io=100%), power factor correction (PFC), and an auxiliary 12V output at 0.1A. It also provides features like adjustable output, remote on/off, and remote sense capabilities.
Designed for reliability, the PCA1000F-24-T operates within an ambient temperature range of -20°C to 70°C. Its mechanical dimensions are 178.0mm in length, 102.0mm in width, and 41.0mm in height, facilitating chassis mounting. The unit is built to meet stringent safety standards, including 60601-1, 60950-1, and 62368-1, and carries approvals from CE, CSA, cURus, D-Mark, and UL.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. This power supply is suitable for ITE (Commercial) and Medical applications.
The Cosel PCA1000F-24-T has an output voltage of 24V and a current rating of 44A, providing a total power of 1056W.
This converter supports a universal input voltage range of 85-264 VAC and 88-370 VDC.
The operating temperature range for this unit is -20°C to 70°C.
It complies with standard numbers 60601-1, 60950-1, and 62368-1.
The dimensions are 178.0mm in length, 102.0mm in width, and 41.0mm in height.
Yes, the RoHS status is RoHS3 Compliant.
