| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

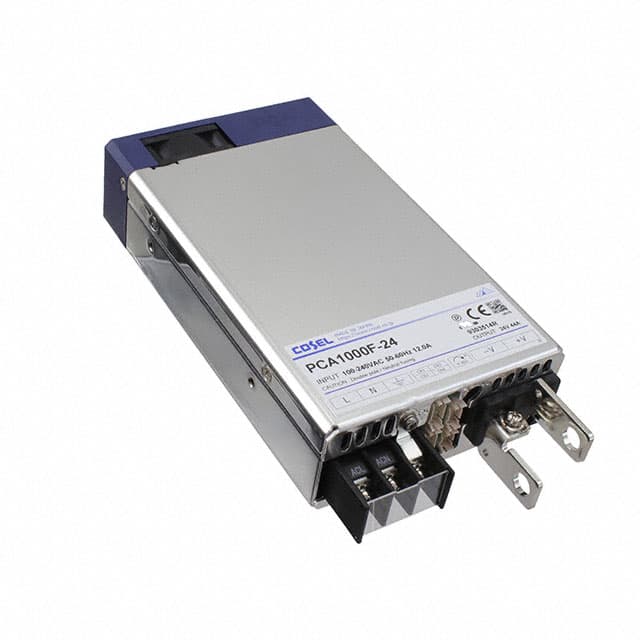

The Cosel PCA1000F-24 is an enclosed AC/DC converter designed for reliable power delivery. It offers a high power output of 1056W with a 24V DC output voltage and a maximum current of 44A. The unit supports a universal input voltage range of 85-264 VAC and can also accept DC input from 88-370 VDC.
Key features include an adjustable output, power factor correction (PFC), remote on/off control, and remote sense capabilities. With an efficiency rating of up to 93%, it minimizes energy waste. The converter operates within a temperature range of -20°C to 70°C and provides 4kV of isolation voltage.
Designed for versatility, the PCA1000F-24 is suitable for ITE (Commercial) and Medical applications, adhering to standards such as 60601-1, 60950-1, and 62368-1. Its chassis mount type and dimensions of 178.0mm x 102.0mm x 41.0mm make it suitable for integration into various systems.
Compliance includes CE, CSA, cURus, D-Mark, and UL approvals. The product is also listed with RoHS3 compliance, REACH unaffected status, and MSL 1 Unlimited, though these compliance details are noted as having low confidence and require verification.
The Cosel PCA1000F-24 provides a 24V DC output voltage.
The PCA1000F-24 has a maximum output power of 1056W.
The PCA1000F-24 accepts a universal input voltage range of 85-264 VAC and 88-370 VDC.
The operating temperature range for the PCA1000F-24 is -20°C to 70°C.
The PCA1000F-24 complies with safety standards 60601-1, 60950-1, and 62368-1.
The PCA1000F-24 is a chassis mount type.
