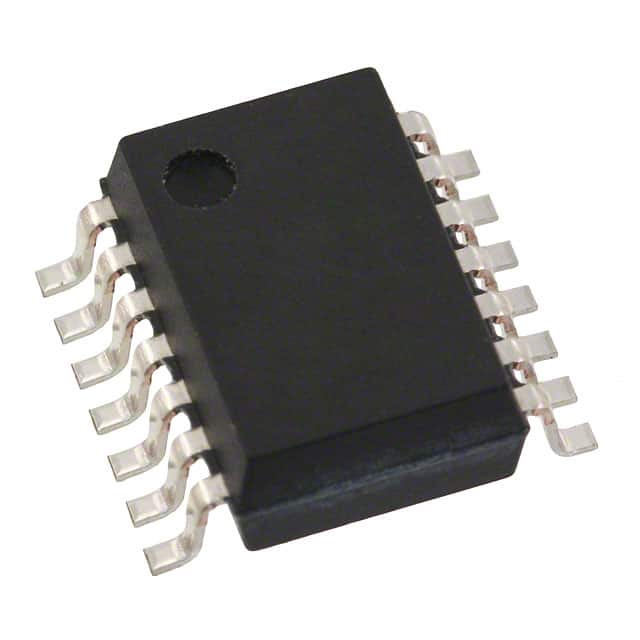

PC929J00000F The Sharp Microelectronics PC929J00000F is a 1-channel gate driver featuring optical coupling technology and 4kV isolation. It is designed for surface mounting in a 14-SMT package.
Mfr Part #:

PC929J00000F

Available from 3 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC929J00000F is a 1-channel gate driver featuring optical coupling technology and 4kV isolation. It is designed for surface mounting in a 14-SMT package.
✓ Total Stock: 5,314 pcs
$ Price Range: $2.62

PC929J00000F Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3,400 pcs
On Request
3400 pcs On Request 1 On Request On Request 16+14+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,874 pcs
On Request
1874 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC929J00000F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Common Mode Transient Immunity (Min)
Current
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Propagation Delay tpLH
Rise
Supplier Device Package
Technology
Voltage
View Similar Products (0)

PC929J00000F Description

Short technical summary and product information.

The PC929J00000F Series from Sharp Microelectronics is an optocoupler designed as a gate driver. It utilizes optical coupling technology to provide a high isolation voltage of 4.0 kV (rms).



This device offers high-speed response with a maximum propagation delay (tPLH, tPHL) of 0.5 µs. It includes a built-in IGBT short-circuit protection circuit and a direct drive circuit for IGBTs. The peak output current is rated at a maximum of 0.4 A.



The PC929J00000F is packaged in a 14-pin SMT (Surface Mount Technology) configuration, specifically a 14-SOIC package with a 6.50mm width and 1.27mm lead pitch. It operates within a temperature range of -25°C to 80°C and is suitable for applications requiring robust isolation and fast switching.



This component is recognized by UL1577 and approved by VDE, indicating compliance with relevant safety standards. It is also lead-free and RoHS directive compliant.

PC929J00000F Quick Information

Product Type: Gate Driver
Series: PC929J00000F Series
Canonical Name: PC929J00000F Optical Coupling Gate Driver
Subcategory: Gate Drivers

PC929J00000F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free

PC929J00000F Estimated Pricing

Qty Low High
1+ $2.62 $2.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC929J00000F Features

  • 4.0 kV isolation voltage.
  • High-speed response up to 0.5 µs.
  • Built-in IGBT protection circuit.
  • 14-pin SMT package for surface mounting.
  • Lead-free and RoHS directive compliant.

PC929J00000F Applications

  • Ideal for inverter applications.
  • Suitable for IGBT gate drive.
  • Provides high-speed signal isolation.
  • Used in power electronics circuits.

PC929J00000F FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PC929J00000F?

The PC929J00000F offers an isolation voltage of 4.0 kV (rms).

What is the propagation delay of the PC929J00000F gate driver?

The propagation delay (tPLH and tPHL) for the PC929J00000F is a maximum of 0.5 µs.

What type of package is the PC929J00000F available in?

The PC929J00000F is available in a 14-SMT package, specifically a 14-SOIC (0.256", 6.50mm Width).

What is the operating temperature range for the PC929J00000F?

The operating temperature range for this device is -25°C to 80°C.

Is the PC929J00000F RoHS compliant?

Yes, the PC929J00000F is RoHS3 Compliant.
