PC851XJ0000F The Sharp Microelectronics PC851XJ0000F is a transistor output optoisolator featuring 5000Vrms isolation and a 350V output voltage. It is designed for surface mounting.
Mfr Part #:

PC851XJ0000F

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC851XJ0000F is a transistor output optoisolator featuring 5000Vrms isolation and a 350V output voltage. It is designed for surface mounting.
✓ Total Stock: 1,900 pcs
$ Price Range: $0.33

PC851XJ0000F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
1,900 pcs
On Request
1900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC851XJ0000F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Mounting Type
Number of Channels
Operating Temperature
Output Current
Output Voltage
View Similar Products (0)

PC851XJ0000F Description

Short technical summary and product information.

The PC851XJ0000F from Sharp Microelectronics is an optoisolator with a transistor output, designed for signal isolation applications. It provides a high isolation voltage of 5000Vrms and can handle an output voltage of up to 350V.



This component features a typical forward voltage of 1.2V and a maximum Vce saturation of 300mV. The current transfer ratio is a minimum of 40% at 5mA, and it supports an output current of up to 50mA. The operating temperature range is from -25°C to 100°C.

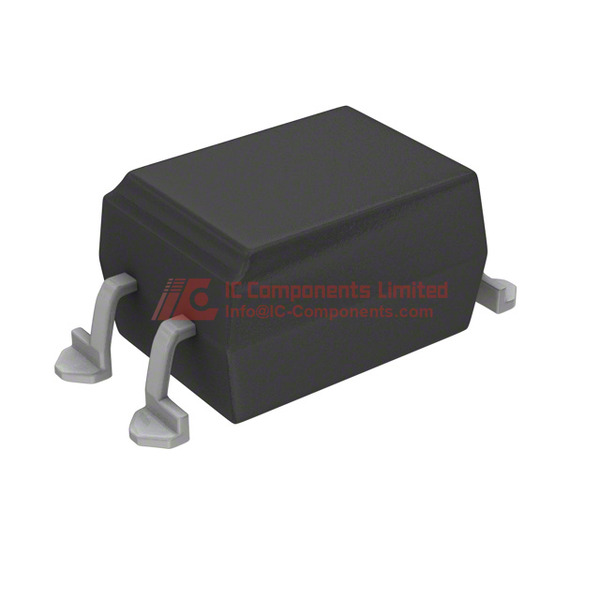

The PC851XJ0000F is housed in a 4-SMD Gull Wing package, suitable for surface mounting. It operates on DC input and has a single channel.



This optoisolator is RoHS compliant and has an MSL rating of 1.

PC851XJ0000F Quick Information

Product Type: Optoisolator
Canonical Name: Sharp Microelectronics PC851XJ0000F Optoisolator
Subcategory: Transistor, Photovoltaic Output

PC851XJ0000F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PC851XJ0000F Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC851XJ0000F Features

  • 5000Vrms isolation voltage rating.
  • 350V maximum output voltage.
  • 1.2V typical forward voltage.
  • Surface mount 4-SMD Gull Wing package.
  • RoHS compliant.

PC851XJ0000F Applications

  • Ideal for signal isolation circuits.
  • Suitable for power supply applications.
  • Used in control system interfaces.
  • Applicable in telecommunications equipment.

PC851XJ0000F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PC851XJ0000F?

The PC851XJ0000F has an isolation voltage of 5000Vrms.

What is the maximum output voltage for the PC851XJ0000F?

The maximum output voltage for the PC851XJ0000F is 350V.

What is the typical forward voltage of this optoisolator?

The typical forward voltage for the PC851XJ0000F is 1.2V.

What is the operating temperature range for the PC851XJ0000F?

The PC851XJ0000F operates between -25°C and 100°C.

How is the PC851XJ0000F packaged?

The PC851XJ0000F is supplied in a 4-SMD Gull Wing package and is suitable for surface mounting.

Is the PC851XJ0000F RoHS compliant?

Yes, the PC851XJ0000F is RoHS compliant.
