Mfr Part #:

PC81712NSZ0F

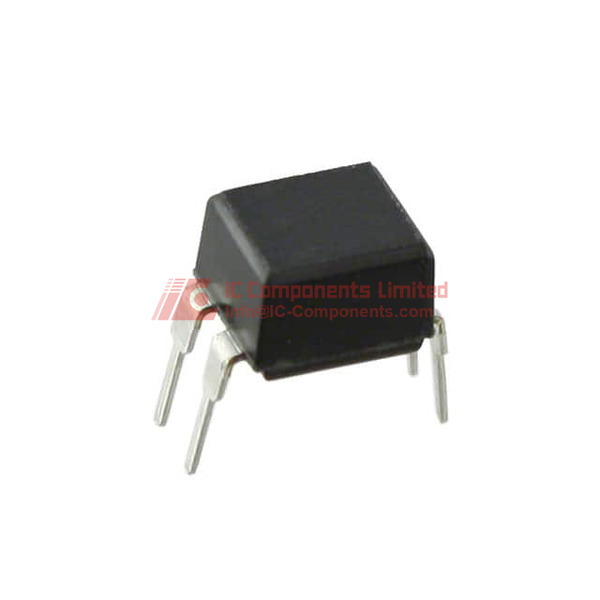

The Sharp Microelectronics PC81712NSZ0F is a transistor output optocoupler featuring 5000Vrms isolation and a 4-DIP package. It operates with a typical forward voltage of 1.2V.

✓ Total Stock: 1 pcs

$ Price Range: $0.33

PC81712NSZ0F Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

PC81712NSZ0F Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Sharp Microelectronics
Mounting Type	Through Hole
Operating Temperature	-30°C ~ 100°C
Supplier Device Package	4-DIP

View Similar Products (0)

PC81712NSZ0F Description

Short technical summary and product information.

The PC81712NSZ0F from Sharp Microelectronics is a transistor output optocoupler designed for isolation applications. It provides a high isolation voltage of 5000Vrms, making it suitable for circuits requiring electrical separation.

This optocoupler features a typical forward voltage of 1.2V and a maximum output current of 50mA. The saturation voltage is a maximum of 200mV. It supports a wide operating temperature range from -30°C to 100°C.

Packaged in a standard 4-DIP through-hole mount configuration, the PC81712NSZ0F is designed for easy integration into printed circuit boards. Its current transfer ratio ranges from a minimum of 160% at 500µA to a maximum of 400% at 500µA.

This component is suitable for various industrial and electronic applications where signal isolation is critical. The device has a maximum output voltage of 80V and a maximum DC forward current of 10mA.

PC81712NSZ0F Quick Information

Product Type: Optocoupler

Series: PC817

Canonical Name: PC81712NSZ0F Optocoupler

Subcategory: Optoisolator, Transistor Output

PC81712NSZ0F Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PC81712NSZ0F Estimated Pricing

Qty	Low	High
1+	$0.33	$0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC81712NSZ0F Features

5000Vrms isolation voltage rating.
Typical 1.2V forward voltage.
Maximum 50mA output current.
Operates from -30°C to 100°C.
Through-hole 4-DIP package.

PC81712NSZ0F Applications

Provides essential signal isolation.
Suitable for power supply circuits.
Used in control system interfaces.
Applicable in telecommunications equipment.

PC81712NSZ0F FAQs

7 frequently asked questions generated from this part’s specifications.

What is the isolation voltage of the PC81712NSZ0F?

5000 Vrms.

What is the operating temperature range?

-30°C to 100°C.

What is the package type?

4-DIP through-hole.

What is the current transfer ratio?

160% to 400% at 500µA.

What is the maximum output current?

50 mA.

What is the forward voltage?

1.2 V typical at 10mA.

What is the maximum output voltage?

80 V.
