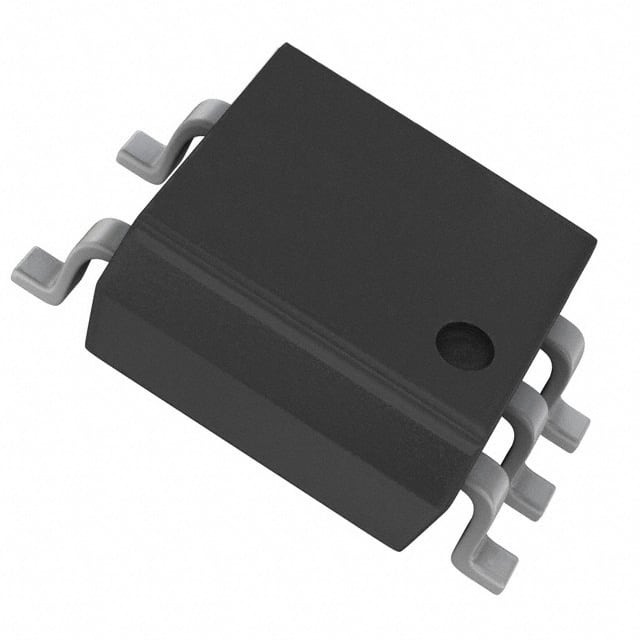

PC457L0NIP0F The Sharp Microelectronics PC457L0NIP0F is a high-speed OPIC photocoupler with 3.75kV isolation voltage. It is designed for surface mounting in a 5-pin mini-flat package.
Mfr Part #:

PC457L0NIP0F

Available from 5 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC457L0NIP0F is a high-speed OPIC photocoupler with 3.75kV isolation voltage. It is designed for surface mounting in a 5-pin mini-flat package.
✓ Total Stock: 31,534 pcs
$ Price Range: $0.39

PC457L0NIP0F Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC457L0NIP0F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Industrial Grade
Input Type
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature
Output Type
Response Time
Supplier Device Package
Tape & Reel
Turn On
Voltage
View Similar Products (0)

PC457L0NIP0F Description

Short technical summary and product information.

The PC457L0NIP0F series from Sharp Microelectronics is an OPIC photocoupler featuring a high-speed response of 1Mb/s and high common-mode rejection (CMR) of 15kV/µs. This component provides an isolation voltage of 3.75 kVrms between input and output.



Designed for efficiency and reliability, it utilizes a double transfer mold package, making it suitable for flow soldering processes. The device operates within a temperature range of -55°C to 85°C and is housed in a compact 5-pin mini-flat package (5-MFP).



Key electrical characteristics include a typical response time of 0.2 µs (tPHL) and 0.4 µs (tPLH), with an input current rating of 25 mA. The current transfer ratio (CTR) ranges from a minimum of 19% to a maximum of 50% at 16mA.



This optoisolator is recognized by UL1577 and approved by VDE, meeting UL flammability grade 94V-0 for its package resin. It is compliant with the RoHS directive. Applications include programmable controllers and inverters.

PC457L0NIP0F Quick Information

Product Type: Optoisolator
Series: PC457L0NIP0F Series
Canonical Name: PC457L0NIP0F OPIC Photocoupler
Subcategory: Transistor Output

PC457L0NIP0F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PC457L0NIP0F Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC457L0NIP0F Features

  • High speed 1Mb/s response time.
  • 3.75 kVrms input-output isolation.
  • High common-mode rejection (15kV/µs).
  • Surface mount 5-pin mini-flat package.
  • Suitable for flow soldering applications.

PC457L0NIP0F Applications

  • Electrical isolation in industrial circuits
  • Signal isolation in communication systems
  • High noise immunity applications
  • Used in power supply isolation

PC457L0NIP0F FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PC457L0NIP0F?

The isolation voltage is 3.75 kVrms.

What is the data rate of this optoisolator?

The typical data rate is 1 Mb/s.

What is the operating temperature range?

The operating temperature range is -55°C to 85°C.

Is the PC457L0NIP0F RoHS compliant?

Yes, it is RoHS3 Compliant.

What package is the PC457L0NIP0F supplied in?

It is supplied in a 5-pin mini-flat (5-MFP) package, also described as 6-SOIC (0.173", 4.40mm Width), 5 Leads.
