Mfr Part #:

PC40P9/5Z-52H

Name: PC40P9/5Z-52H
Brand: TDK Corporation
SKU: PC40P9/5Z-52H

Mfr Name: TDK Corporation

Description:

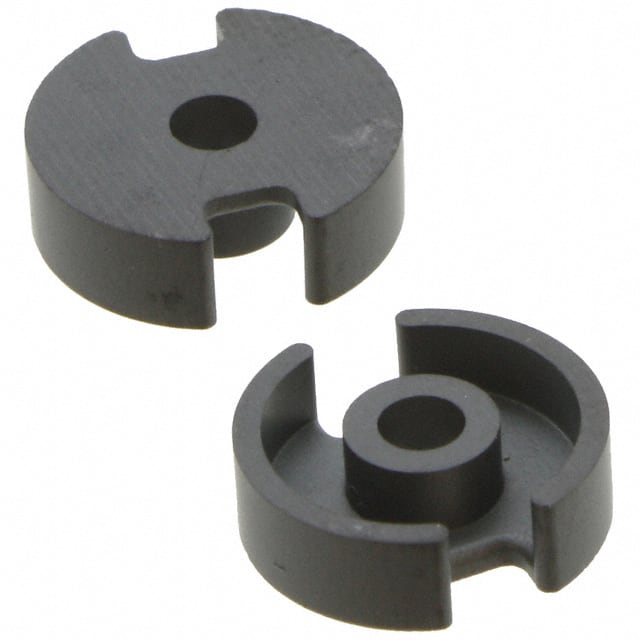

FERRITE CORE 2PC SET

Stock on Request

PC40P9/5Z-52H Description

Short technical summary and product information.

FERRITE CORE 2PC SET

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Corporation
Core Type	P (Pot Core)
Diameter	0.288" (7.33mm)
Effective Area (Ae) mm²	10
Effective Length (le) mm	12.4
Effective Magnetic Volume (Ve) mm³	124
Effective Permeability (µe)	821
Finish	Uncoated
Gap	Ungapped
Height	0.136" (3.45mm)
Material	PC40
Supplier Device Package	P 9 x 5
