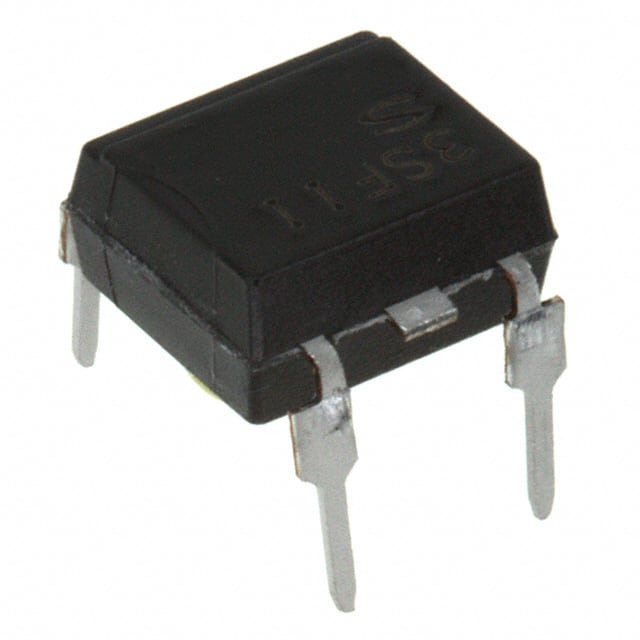

PC3SF11YTZBF The Sharp Microelectronics PC3SF11YTZBF is a phototriac coupler with 600V VDRM and 5kV isolation. It is designed for AC load control applications.
Mfr Part #:

PC3SF11YTZBF

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC3SF11YTZBF is a phototriac coupler with 600V VDRM and 5kV isolation. It is designed for AC load control applications.
✓ Total Stock: 616 pcs
$ Price Range: $7.60

PC3SF11YTZBF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
616 pcs
On Request
616 pcs On Request 1 On Request On Request 0819+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC3SF11YTZBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Mounting Type
Number of Channels
Operating Temperature
Output Type
Static dV
Supplier Device Package
Turn On Time
Voltage
Zero Crossing Circuit
View Similar Products (0)

PC3SF11YTZBF Description

Short technical summary and product information.

The Sharp Microelectronics PC3SF11YTZBF is a reinforced insulation type phototriac coupler. It features an infrared emitting diode (IRED) optically coupled to an output phototriac, providing full-wave control. This device is suitable for triggering Triacs used to switch AC loads such as heaters, fans, motors, solenoids, and valves.



Key electrical specifications include a repetitive peak off-state voltage (VDRM) of 600V and a high isolation voltage of 5.0kVrms between input and output. It offers superior noise immunity with a static dV/dt of 1kV/µs. The output type is Triac, and it does not feature a zero crossing circuit. The turn-on time is a maximum of 100µs.



This optoisolator is housed in a 6-pin DIP package, specifically a 6-DIP (0.300", 7.62mm) with 5 leads, and is designed for through-hole mounting. The operating temperature range is -30°C to 100°C. It has received approvals from agencies including BSI, CSA, DEMKO, FIMKO, SEMKO, UR, and VDE.



The PC3SF11YTZBF series is ideal for implementing phase control in applications like lighting control and temperature control (HVAC), as well as AC line control in power supply applications.

PC3SF11YTZBF Quick Information

Product Type: Optoisolator
Series: PC3SF11YVZ
Canonical Name: Phototriac Coupler
Subcategory: Triac Output

PC3SF11YTZBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PC3SF11YTZBF Estimated Pricing

Qty Low High
1+ $7.60 $7.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC3SF11YTZBF Features

  • 600V repetitive peak off-state voltage.
  • 5.0kVrms input to output isolation.
  • Superior noise immunity dV/dt 1kV/µs.
  • Triac output for AC load control.
  • 6-pin DIP package for through-hole mounting.

PC3SF11YTZBF Applications

  • Triggering Triacs for AC loads.
  • Phase control in lighting systems.
  • Temperature control applications (HVAC).
  • AC line control in power supplies.

PC3SF11YTZBF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the repetitive peak off-state voltage (VDRM) for the PC3SF11YTZBF?

The repetitive peak off-state voltage (VDRM) is 600V.

What is the isolation voltage provided by the PC3SF11YTZBF?

The isolation voltage between input and output is 5.0kVrms.

What is the operating temperature range for this optoisolator?

The operating temperature range is -30°C to 100°C.

What type of output does the PC3SF11YTZBF have?

The output type is Triac.

Does the PC3SF11YTZBF have a zero crossing circuit?

No, the PC3SF11YTZBF does not have a zero crossing circuit.

What is the package type and mounting method for the PC3SF11YTZBF?

It is a 6-DIP package designed for through-hole mounting.
