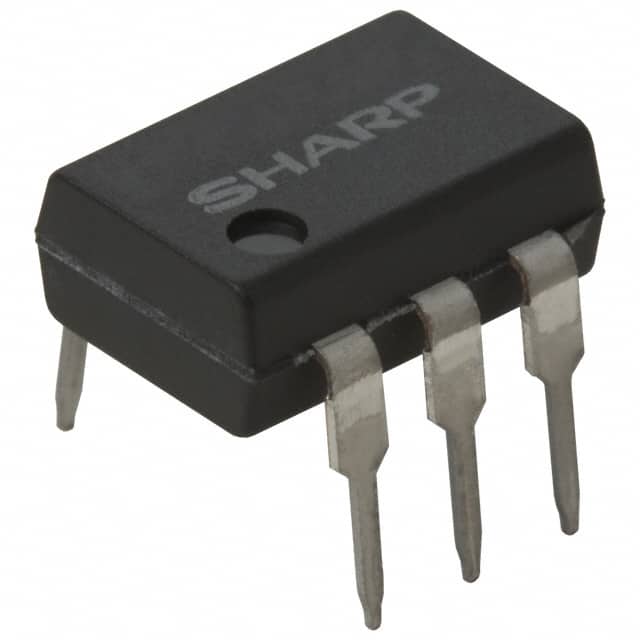

PC3SD11YTZCH The Sharp Microelectronics PC3SD11YTZCH is a Triac & SCR Output Optocoupler. It features 5000Vrms isolation and a DIP-6 package.
Mfr Part #:

PC3SD11YTZCH

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC3SD11YTZCH is a Triac & SCR Output Optocoupler. It features 5000Vrms isolation and a DIP-6 package.
✓ Total Stock: 8,530 pcs
$ Price Range: $7.60

PC3SD11YTZCH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
8,530 pcs
On Request
8530 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC3SD11YTZCH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Forward Current
Forward Voltage
Mounting Type
Number of Channels
Operating Temperature
Output Type
Static dV
Supplier Device Package
Turn On Time
Voltage
Zero Crossing Circuit
View Similar Products (0)

PC3SD11YTZCH Description

Short technical summary and product information.

The Sharp Microelectronics PC3SD11YTZCH is an optocoupler designed for Triac and SCR output applications. It provides 5000Vrms of isolation, ensuring safety and signal integrity in various electronic circuits.



Key electrical specifications include a forward current of 20 mA, an on-state RMS current of 0.1 A, and a forward voltage of 1.4 V. The device offers an off-state output voltage of 600 V and a maximum turn-on time of 100µs. It operates without a zero-crossing circuit and has a maximum trigger current of 5 mA.



This optocoupler is housed in a Through Hole mounting style, specifically in a 6-DIP (0.300", 7.62mm) package with 5 leads. The operating temperature range is from -30°C to 100°C, making it suitable for a variety of environmental conditions. The part number for this specific component is PC3SD11YTZCH-ND.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. These attributes are important for manufacturing and regulatory requirements.

PC3SD11YTZCH Quick Information

Product Type: Optocoupler
Canonical Name: PC3SD11YTZCH Triac & SCR Output Optocoupler
Subcategory: Triac & SCR Output Optocouplers

PC3SD11YTZCH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PC3SD11YTZCH Estimated Pricing

Qty Low High
1+ $7.60 $7.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC3SD11YTZCH Features

  • 5000Vrms isolation voltage rating.
  • 0.1A on-state RMS current capability.
  • 100µs maximum turn-on time.
  • Through Hole mounting style.
  • Operates from -30°C to 100°C.

PC3SD11YTZCH Applications

  • Used for electrical circuit isolation
  • Suitable for high-voltage applications
  • Ideal for signal transfer in industrial systems
  • Designed for through-hole mounting

PC3SD11YTZCH FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PC3SD11YTZCH?

The isolation voltage is 5000 Vrms.

What is the operating temperature range for this optocoupler?

The operating temperature range is -30°C to 100°C.

What type of output does the PC3SD11YTZCH have?

The output type is Triac.

Does the PC3SD11YTZCH have a zero-crossing circuit?

No, it does not have a zero-crossing circuit.

What is the package type for the PC3SD11YTZCH?

The package is DIP-6.
