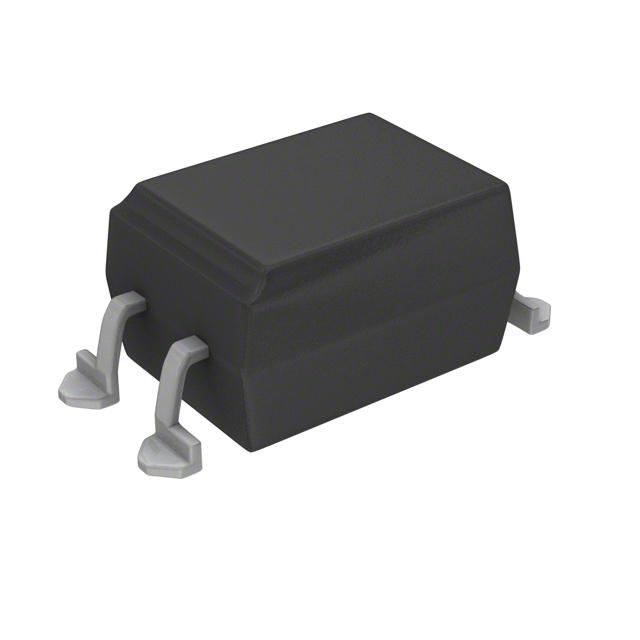

PC3H7AJ0000F The Sharp Microelectronics PC3H7AJ0000F is an optoisolator with a transistor output. It offers 50mA output current and 2500Vrms isolation voltage.
Mfr Part #:

PC3H7AJ0000F

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC3H7AJ0000F is an optoisolator with a transistor output. It offers 50mA output current and 2500Vrms isolation voltage.
✓ Total Stock: 90 pcs
$ Price Range: $1.87

PC3H7AJ0000F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC3H7AJ0000F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Type
Supplier Device Package
Vce Saturation (Max)
View Similar Products (0)

PC3H7AJ0000F Description

Short technical summary and product information.

The Sharp Microelectronics PC3H7AJ0000F is a transistor output optoisolator designed for signal isolation. It features a maximum output current of 50mA and a high isolation voltage of 2500Vrms, ensuring reliable separation between circuits.



This optoisolator operates within a temperature range of -30°C to 100°C. Key electrical characteristics include a typical forward voltage of 1.2V and a maximum Vce saturation of 200mV. The current transfer ratio ranges from a minimum of 35% to a maximum of 70% at 1mA.



Packaged in a 4-SOIC (4-Mini-Flat) case, the PC3H7AJ0000F is suitable for surface mount applications. It is supplied on tape and reel for automated assembly processes. The device has 1 channel and a DC input type.

PC3H7AJ0000F Quick Information

Product Type: Optoisolator
Canonical Name: Optoisolator Transistor Output
Subcategory: Transistor Output

PC3H7AJ0000F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PC3H7AJ0000F Estimated Pricing

Qty Low High
1+ $1.87 $1.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC3H7AJ0000F Features

  • Transistor output optoisolator for signal isolation.
  • 50mA maximum output current capability.
  • 2500Vrms high isolation voltage rating.
  • Wide operating temperature range of -30°C to 100°C.
  • Surface mount 4-SOIC (4-Mini-Flat) package.

PC3H7AJ0000F Applications

  • Used for electrical isolation between circuits.
  • Suitable for signal transmission applications.
  • Ideal for power supply control circuits.
  • Applicable in telecommunication systems.

PC3H7AJ0000F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output current for the PC3H7AJ0000F?

The PC3H7AJ0000F has a maximum output current of 50mA per channel.

What is the isolation voltage of the PC3H7AJ0000F?

The isolation voltage for the PC3H7AJ0000F is 2500Vrms.

What is the operating temperature range for this optoisolator?

The operating temperature range for the PC3H7AJ0000F is -30°C to 100°C.

What is the typical forward voltage of the PC3H7AJ0000F?

The typical forward voltage (Vf) for the PC3H7AJ0000F is 1.2V.

What package type is the PC3H7AJ0000F supplied in?

The PC3H7AJ0000F is supplied in a 4-SOIC (0.173", 4.40mm Width) package, also referred to as 4-Mini-Flat.

How is the PC3H7AJ0000F packaged for assembly?

The PC3H7AJ0000F is available in Tape & Reel (TR) packaging.
