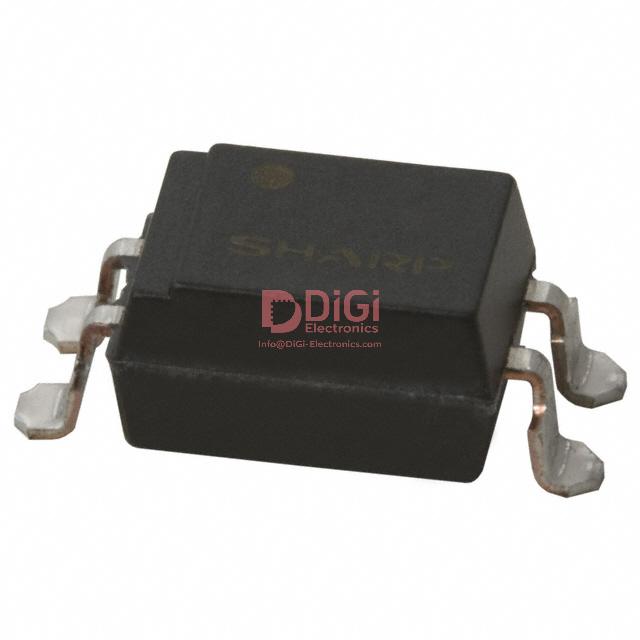

PC357T13J00F The Sharp Microelectronics PC357T13J00F is a transistor output optoisolator featuring 5000Vrms isolation. It is designed for surface mount applications.
Mfr Part #:

PC357T13J00F

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PC357T13J00F is a transistor output optoisolator featuring 5000Vrms isolation. It is designed for surface mount applications.
✓ Total Stock: 750 pcs
$ Price Range: $0.33

PC357T13J00F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
750 pcs
On Request
750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PC357T13J00F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Type
Vce Saturation (Max)
View Similar Products (0)

PC357T13J00F Description

Short technical summary and product information.

The Sharp Microelectronics PC357T13J00F is a single-channel optoisolator with a transistor output. It provides a high isolation voltage of 5000Vrms, making it suitable for applications requiring electrical isolation.



Key electrical characteristics include a minimum current transfer ratio of 100% at 5mA and a maximum of 250% at 5mA. The output can handle up to 70V, with an output current of 50mA per channel. The typical forward voltage is 1.2V, and the maximum DC forward current is 50mA. The saturation voltage (Vce) is a maximum of 200mV.



This optoisolator operates within a temperature range of -30°C to 100°C. It is housed in a 4-SMD package and is designed for surface mounting.



The product status is listed as Obsolete.

PC357T13J00F Quick Information

Product Type: Optoisolator
Series: PC357
Canonical Name: Sharp Microelectronics PC357T13J00F Optoisolator
Subcategory: Transistor, Photovoltaic Output Optoisolators

PC357T13J00F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PC357T13J00F Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

PC357T13J00F Features

  • Provides 5000Vrms isolation voltage.
  • Features a transistor output type.
  • Surface mount 4-SMD package.
  • Operates from -30°C to 100°C.
  • Single channel optoisolator.

PC357T13J00F Applications

  • Isolates control signals in industrial automation systems.
  • Protects low voltage logic circuits from high voltages.
  • Interfaces microcontrollers with power switching transistors safely.
  • Provides signal isolation in medical equipment power supplies.
  • Couples digital signals across isolated ground planes.

PC357T13J00F FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PC357T13J00F?

The PC357T13J00F offers 5000Vrms isolation voltage.

What is the output type of this optoisolator?

The output type is Transistor.

What is the operating temperature range?

The operating temperature range is -30°C to 100°C.

What type of package is the PC357T13J00F in?

The package is 4-SMD.

What is the current transfer ratio?

The current transfer ratio is a minimum of 100% @ 5mA and a maximum of 250% @ 5mA.
