| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| Ripple | |
| Type | |
| Voltage |

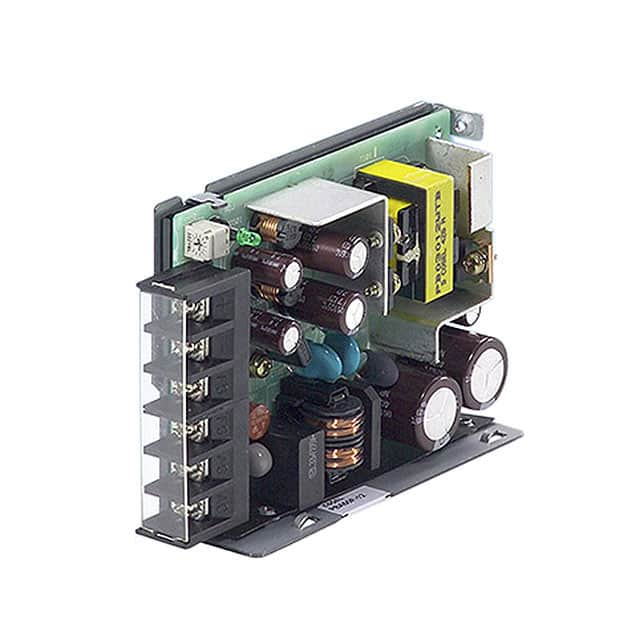

The Cosel PBW30F-5 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 30W output power with a -5V output voltage and 2A current.
Key electrical specifications include a universal input voltage range (AC85 - 264V), an efficiency of 75%, and a hold-up time of 20ms. The converter features overcurrent and overvoltage protection circuits. It also includes isolation ratings of AC3,000V (Input-Output), AC2,000V (Input-FG), and AC500V (Output-FG).
This model is designed for chassis mounting and carries approval agency certifications including CE, cURus, and TUV. It complies with RoHS3 regulations and has an MSL rating of 1.
The Cosel PBW30F-5 has an output voltage of -5V.
The maximum output current for the PBW30F-5 is 2 A.
The PBW30F-5 provides a total output power of 30W.
The PBW30F-5 features a universal input voltage range of AC85 - 264V.
The Cosel PBW30F-5 is designed for chassis mount installation.
The PBW30F-5 has CE, cURus, and TUV approval agency certifications.
