| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage |

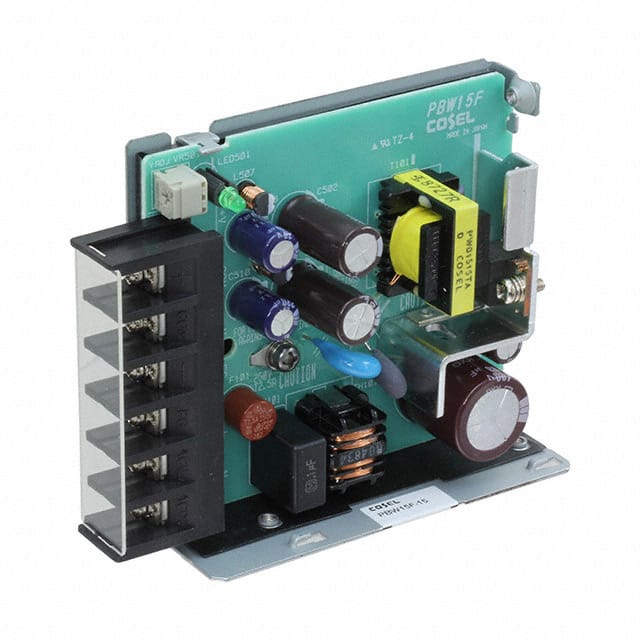

The Cosel PBW15F-15 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 15W power output with dual +/-15V outputs, each capable of delivering 1A.
Key electrical specifications include a universal input voltage range of 85-264 VAC and an efficiency of 80%. The converter offers robust isolation voltages: 3000 VAC between input and output, 2000 VAC between input and FG, and 500 VAC between output and FG.
Designed for easy integration, the PBW15F-15 features a chassis mount and operates within a temperature range of -10°C to 60°C. It also includes features such as harmonic attenuation and synchronous rectification for improved performance and compliance.
The PBW15F-15 accepts 85-264 VAC or 120-370 VDC input.
It provides dual outputs: +15V at 1A and -15V at 1A.
The operating temperature range is -10°C to 60°C with derating.
Input-to-output isolation is 3000 VAC.
It is certified CE, cURus, and TUV.
The PBW15F-15 is a chassis mount converter.
Yes, it supports parallel operation.
