| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Type | |
| Voltage | |
| Width |

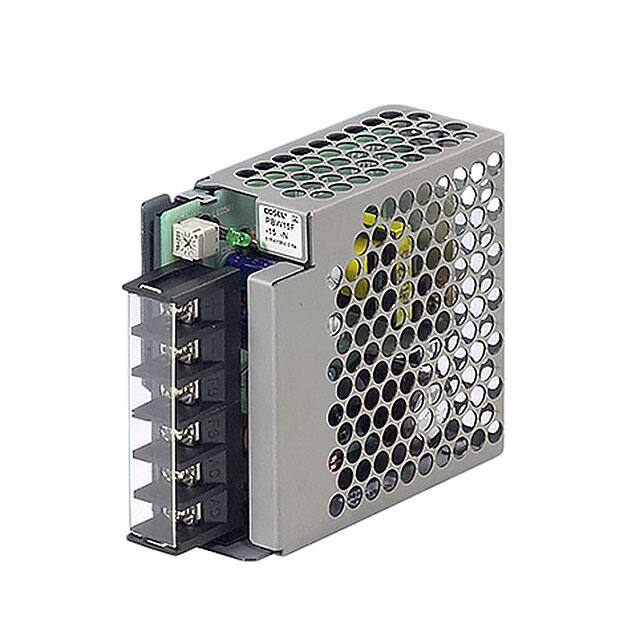

The Cosel PBW15F-12-N1 is an AC DC Converter designed for ITE (Commercial) applications. This open-frame unit features a chassis mount and provides a -12V output with a current rating of 1.4A, delivering a total power of 16.8W. It operates with a universal input voltage range of 85-264 VAC and offers an efficiency of up to 77%.
Key electrical specifications include line regulation of 48mV maximum and load regulation of 100mV maximum. The operating temperature range is -10°C to 71°C with derating. Safety approvals include CE, cURus, and TUV, with compliance to various EMI and EMS standards. The dimensions are 85.1mm x 31.0mm x 78.0mm.
This converter is suitable for various industrial and commercial applications requiring a reliable -12V DC power source. Its open-frame construction and chassis mount facilitate integration into system designs.
The Cosel PBW15F-12-N1 has a -12V output voltage and a 1.4A output current.
The PBW15F-12-N1 accepts a universal input voltage range of 85-264 VAC.
The PBW15F-12-N1 is designed for chassis mount.
The operating temperature range for the PBW15F-12-N1 is -10°C to 71°C with derating.
Yes, the PBW15F-12-N1 complies with IEC61000-3-2 harmonic attenuator standards.
The PBW15F-12-N1 has CE, cURus, and TUV safety agency approvals.
