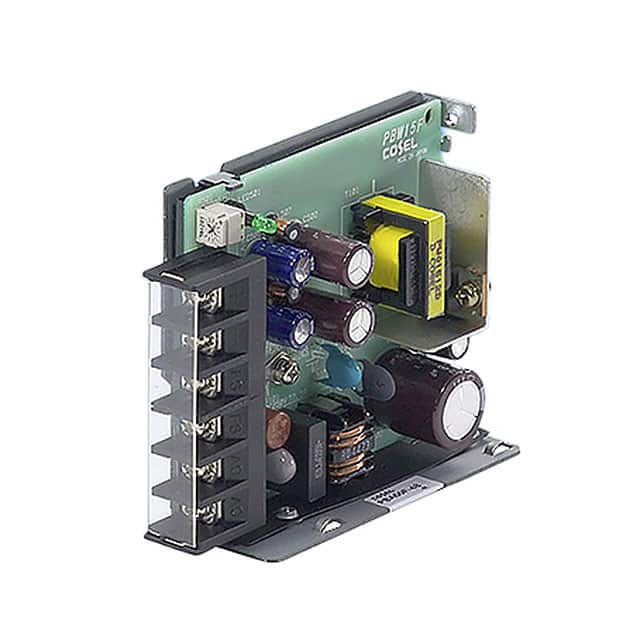

The Cosel PBW15F-12-C is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It accepts a universal input voltage range of 85-264 VAC and delivers a dual output of +/-12V with a maximum current of 1.4A per output, resulting in a total wattage of 16.8W.
This power supply boasts an efficiency of 77% and features essential protections like overcurrent and overvoltage protection. It is designed for chassis mounting and operates within an ambient temperature range of -10°C to 71°C with derating.
Compliance includes CE, cURus, and TUV approvals, along with RoHS3 compliance. The unit is built with high isolation voltages between input/output and ground, ensuring safety and reliability in various electronic systems.
The Cosel PBW15F-12-C provides a dual output voltage of +/-12V.
The maximum output current for the PBW15F-12-C is 1.4A.
The input voltage range for the PBW15F-12-C is 85-264 VAC.
The operating temperature range is -10°C to 71°C with derating.
The efficiency is 77%.
The PBW15F-12-C uses chassis mount.
