| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,216 pcs
|
1216 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance | |
| Features | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Type | |
| Width |

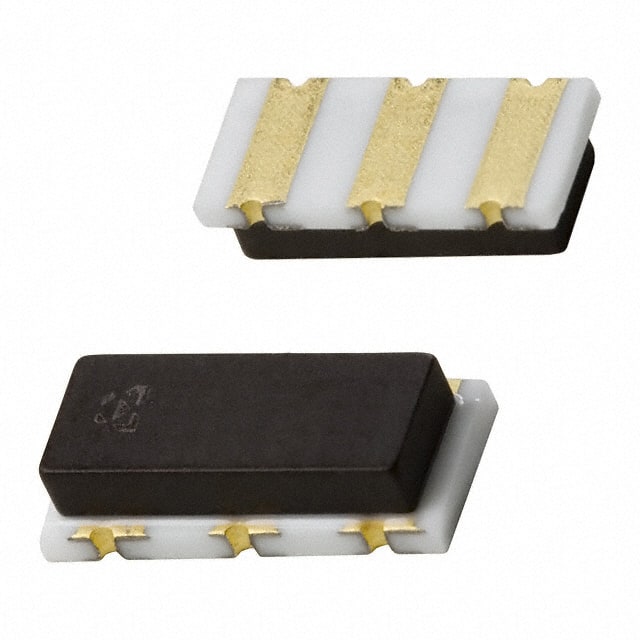

The Kyocera AVX PBRC8.00HR50X000 is a ceramic resonator designed for surface-mount applications requiring a precise 8 MHz reference frequency. It operates with a frequency tolerance of ±0.5% and stability of ±0.5%, ensuring consistent performance across its operating temperature range of -40°C to 85°C.
This resonator features a built-in capacitor, simplifying the external circuit design by reducing the number of external components needed for oscillation. It comes in a compact 3-SMD non-standard package measuring 7.40mm x 3.40mm x 2.00mm, suitable for space-constrained designs.
The PBRC8.00HR50X000 is ideal for use in timing and clock generation circuits where a stable 8 MHz ceramic resonator is required. Its surface-mount packaging supports automated assembly processes.
The frequency is 8 MHz.
The frequency tolerance is ±0.5%.
The load capacitance is 30 pF.
The operating temperature range is -40°C to 85°C.
Yes, the part is indicated as RoHS3 compliant.
It comes in a 3-SMD non-standard package measuring 7.40mm x 3.40mm x 2.00mm.
Yes, it features a built-in capacitor.
