| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

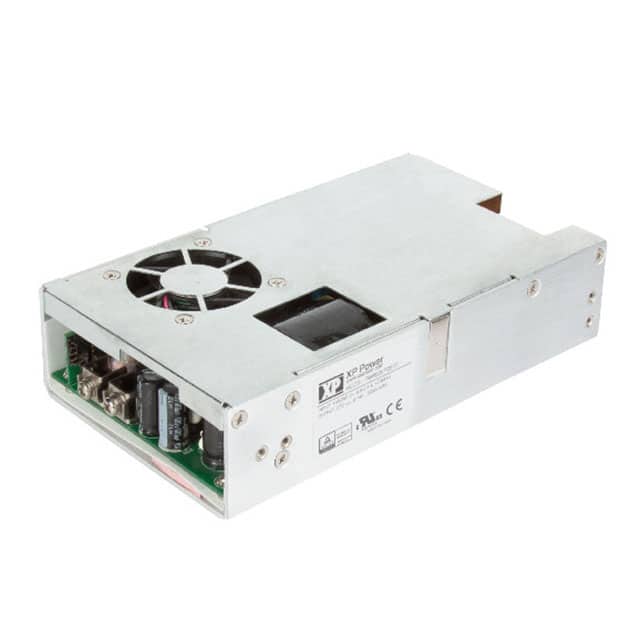

The XP Power PBR500 series AC-DC switching power supplies are designed for ITE/Industrial and medical applications. This model, PBR500PS12C, delivers 350 watts of continuous power with convection cooling or 450 watts with forced air cooling.
Constructed on a U-Channel for mechanical support and heat sinking, the unit measures 177.8 x 101.6 x 44.5mm (7.00” x 4.00” x 1.70”). It features a universal input voltage range of 80-264 VAC and an efficiency of 90% at 230VAC full load. The operating temperature range is -10°C to 70°C with derating.
Key features include remote sense, standby output, and universal input. Safety approvals include CB, TUV, and UL, adhering to standards like IEC62368-1. The power supply is suitable for applications requiring BF rated insulation and can operate at altitudes up to 5000 meters. It also meets Class B conducted and radiated emissions standards (EN55011/32 Level B).
This enclosed power supply is designed for chassis mounting, making it suitable for integration into various systems. It offers a 3-year warranty.
80 to 264 VAC.
12 to 57 VDC (adjustable).
350W convection, 500W forced air.
Chassis mount, enclosed. Dimensions: 177.8 x 101.6 x 43.2 mm.
-10°C to +70°C with linear derating above 50°C.
CB, TUV, UL to IEC 62368-1.
90% typical at 230VAC full load.
