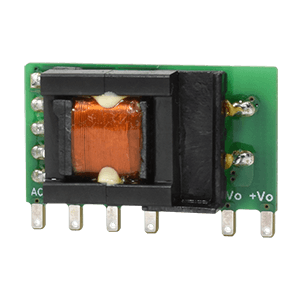

The CUI Inc. PBO-5C-12 is a board mount AC-DC converter with a power rating of 5W and a single 12VDC output. It accepts a wide input voltage range of 85-305VAC or 70-430VDC, making it suitable for various global applications. The converter operates with an efficiency of 79% and has an output current of 420mA.
Designed with an open frame and through-hole mounting, the PBO-5C-12 has dimensions of 26.4mm x 11.0mm x 14.7mm. It operates within a temperature range of -40°C to 85°C with derating. The product is compliant with standards such as 60335-1 and 62368-1 and carries CE, cURus approval agencies.
This product is marked as Not Recommended for New Design (NRND), and availability is limited to remaining stock. Recommended replacements are available.
The input voltage range is 85 to 305 VAC and 70 to 430 VDC.
The output voltage is 12V and the output current is 420mA.
The power rating is 5W.
The efficiency is 79%.
The operating temperature range is -40°C to 85°C with derating.
The package type is a 6-SIP module with through-hole mounting.
It complies with safety standards 60335-1 and 62368-1.
