Mfr Part #:

PBO-5-S5-B

Mfr Name: CUI Inc.

The CUI Inc. PBO-5-S5-B is a 5W AC-DC converter with a 5V output voltage. It offers a wide input voltage range and features over current and short circuit protection.

Stock on Request

PBO-5-S5-B Description

Short technical summary and product information.

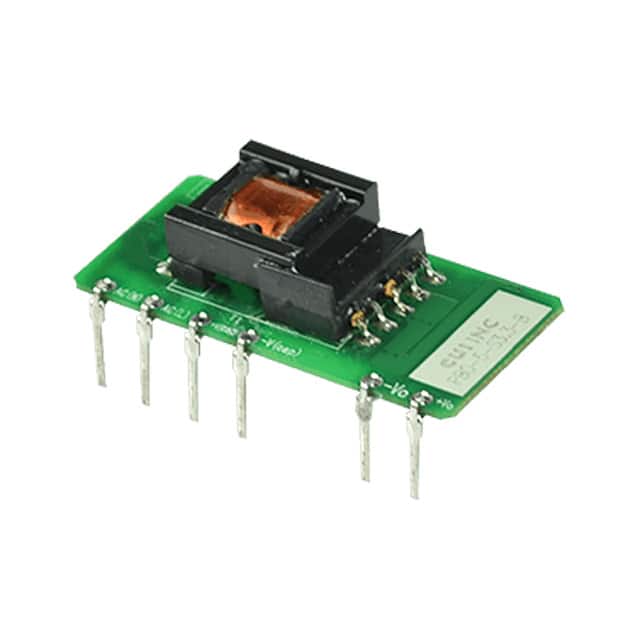

The CUI Inc. PBO-5-S5-B is an AC-DC power supply from the PBO-5 series, designed for board mount applications. This open frame converter provides a 5VDC output at up to 1A, delivering a total of 5W of power.

It features a wide input voltage range of 100-305 Vac and 47-63 Hz frequency, making it suitable for universal applications. The unit boasts an efficiency of 74% and includes essential protections such as over current and short circuit protection with auto recovery.

The PBO-5-S5-B is housed in a compact 14-SIP module with right-angle through-hole mounting. Its dimensions are 40.0mm x 20.0mm x 12.8mm. The operating temperature range is -25°C to 85°C with derating. Safety approvals include CB Scheme, EN, IEC, and UL standards.

PBO-5-S5-B Quick Information

Product Type: AC DC Converter

Series: PBO-5

Canonical Name: CUI Inc. PBO-5 Series AC-DC Power Supply, 5V, 5W

Subcategory: AC DC Converters

PBO-5-S5-B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PBO-5-S5-B Features

Provides 5V DC output at 5W power.
Wide input voltage range of 100-305 Vac.
Features over current and short circuit protection.
Compact 14-SIP module for board mounting.
Operates from -25°C to 85°C with derating.

PBO-5-S5-B Applications

Suitable for ITE (Commercial) applications.
Designed for board mount integration.
Offers universal input voltage compatibility.

PBO-5-S5-B FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the CUI Inc. PBO-5-S5-B?

The output voltage is 5 Vdc.

What is the maximum output current for the PBO-5-S5-B?

The maximum output current is 1000 mA.

What is the power rating of the PBO-5-S5-B?

The power rating is 5 W.

What is the typical efficiency of the PBO-5-S5-B?

The typical efficiency is 74%.

What is the operating temperature range for this AC-DC converter?

The operating temperature range is -25°C to 85°C (With Derating).

What type of package is the PBO-5-S5-B in?

It is a 14-SIP Module, 6 Leads.

How is the PBO-5-S5-B mounted?

It is mounted using a Through Hole, Right Angle method.

Category	AC DC Converters
Manufacturer Name	CUI Inc.
Applications	ITE (Commercial)
Approval Agency	CB Scheme, EN, IEC, UL
Current	0.1 A
Efficiency	74%
Features	Universal Input
Frequency	47 ~ 63 Hz
Height	12.8mm (0.50")
Length	40.0mm (1.57")
Mounting Type	Through Hole, Right Angle
No Load Power Consumption	0.5 W
Number of Outputs	1
Operating Temperature	-25°C ~ 85°C
Output Current	1000 mA
Output Power	5 W
Output Voltage	5 Vdc
Package / Case	14-SIP Module, 6 Leads
Power (Watts)	5 W
SVHC Present	Not Present
Standard Number	55024; 55032 Class A; 60950-1; 62368-1
Temperature Coefficient	±0.02 %/°C
Type	Open Frame
Voltage	100 ~ 305 Vac
Width	20.0mm (0.79")
