| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage |

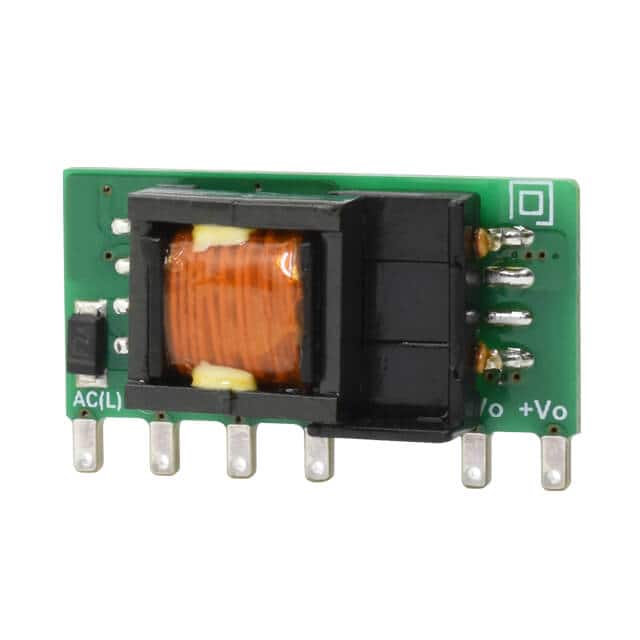

The CUI Inc. PBO-3C-5 is an internal AC-DC power supply designed for various applications requiring a stable 5Vdc output. This model offers a maximum output current of 0.6A, delivering up to 3W of power.
It features a wide input voltage range, accepting both AC (85-305 Vac) and DC (70-430 Vdc) inputs, making it versatile for global use. The PBO-3C series is known for its compact design and compliance with safety standards such as IEC/EN/UL 62368, and designed to meet 61558 & 60335.
Key electrical specifications include an output voltage of 5 Vdc and an output current of 0.6 A. The series also boasts a wide operating temperature range from -40 to +85 C and a high MTBF of 1,000,000 hours, ensuring reliability in demanding environments.
The output voltage is 5 Vdc.
The maximum output current is 0.6 A.
The input voltage range is 85-305 Vac or 70-430 Vdc.
The operating temperature range is -40 to +85 C.
The PBO-3C series is IEC/EN/UL 62368 certified and designed to meet 61558 & 60335 safety standards.
