| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

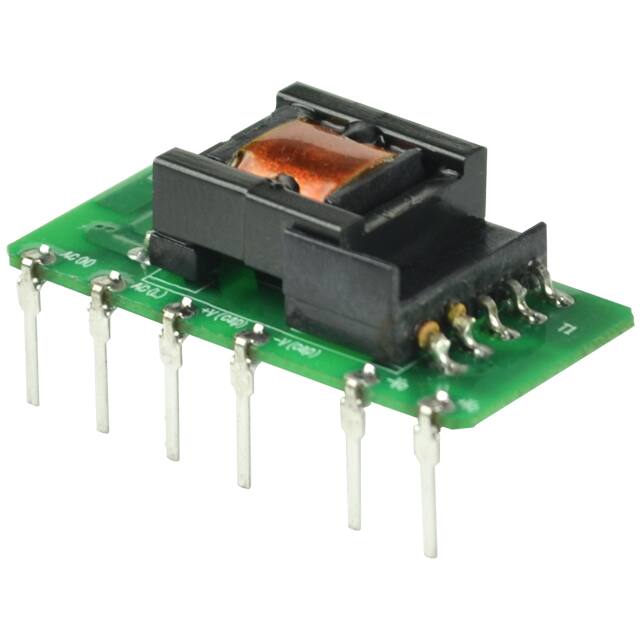

The CUI Inc. PBO-3-S5-B is an AC-DC power supply designed for various applications. It provides a single 5V DC output with a maximum current of 600mA, delivering up to 3W of power. The converter operates over a wide input voltage range of 85 to 305 VAC or 70 to 430 VDC, with a frequency range of 47 to 63 Hz.
Key electrical specifications include a maximum ripple and noise of 150mVp-p and an efficiency of up to 70%. It is protected against over-current and short circuits with auto-recovery features. The unit offers 3,000 Vac isolation between input and output.
Designed for Through Hole mounting, the PBO-3-S5-B comes in a compact 12-SIP module package with 6 leads. It operates within a temperature range of -40°C to 85°C with derating. Safety approvals include CB Scheme, EN, IEC, and UL, making it suitable for ITE (Commercial) applications.
85-305 VAC (also 70-430 VDC).
5 Vdc at up to 600 mA (3W).
-40°C to 85°C with derating.
12-SIP Module, 6 Leads, Through Hole.
3000 Vac input to output for 1 minute.
Over current protection (110-500% auto recovery) and short circuit protection (continuous, auto recovery).
70% typical.
