| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
253 pcs
|
253 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Capacitive Load | |
| Current | |
| Efficiency | |
| Height | |
| Hold Up Time | |
| Industrial Grade | |
| Initial Set Point Accuracy | |
| Input Current | |
| Input Voltage | |
| Inrush Current | |
| Isolation Voltage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Over Current Protection | |
| Over Voltage Protection | |
| Power (Watts) | |
| Ripple and Noise | |
| Short circuit protection | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

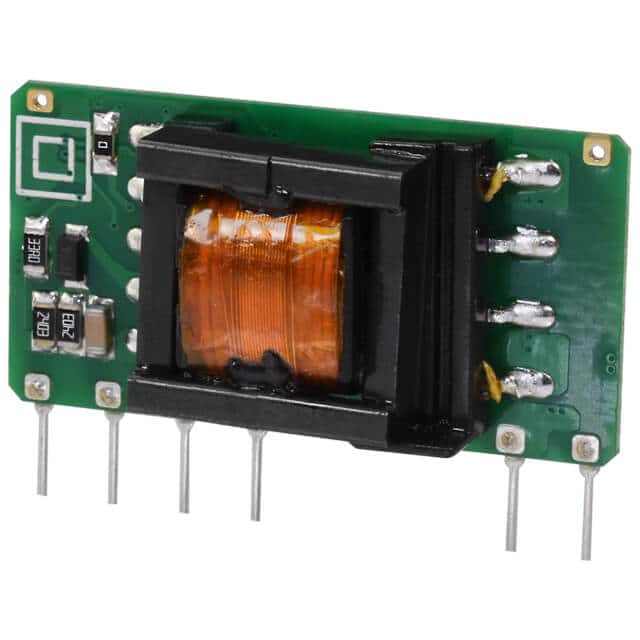

The CUI Inc. PBO-15C-5 is an open frame AC/DC power supply designed for various applications. It delivers a stable 5.0 Vdc output voltage at a maximum current of 2.8A, providing a total output power of 14W. This converter features a wide input voltage range, accepting 85 to 305 VAC or 100 to 430 VDC, making it versatile for different power sources.
With an efficiency of 77% at 230 Vac input, the PBO-15C-5 is designed for reliable operation. It includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-recovery. The operating temperature range is -40°C to 85°C, with derating applied.
The mechanical specifications include a compact size with dimensions of 44.5mm in length, 15.0mm in width, and 24.0mm in height. It is designed for through-hole mounting. The unit is certified to IEC/EN/UL 62368 standards and designed to meet IEC/EN/UL 60335 requirements, suitable for industrial control and smart home applications.
Key electrical specifications include a ripple and noise level of 150 mVp-p, an input current of 0.25A at 230 Vac, and an inrush current of 35A. The no-load power consumption is a low 0.25W. It supports a capacitive load of up to 15,000 μF for 5 Vdc output models.
The output voltage is 5.0 Vdc.
The maximum output current is 2.8 A.
The maximum output power is 14 W.
The efficiency is 77%.
The input voltage range is 85 ~ 305 VAC, 100 ~ 430 VDC.
The operating temperature range is -40°C to 85°C (With Derating).
It is an Open Frame type in a 16-SIP Module, 6 Leads package.
