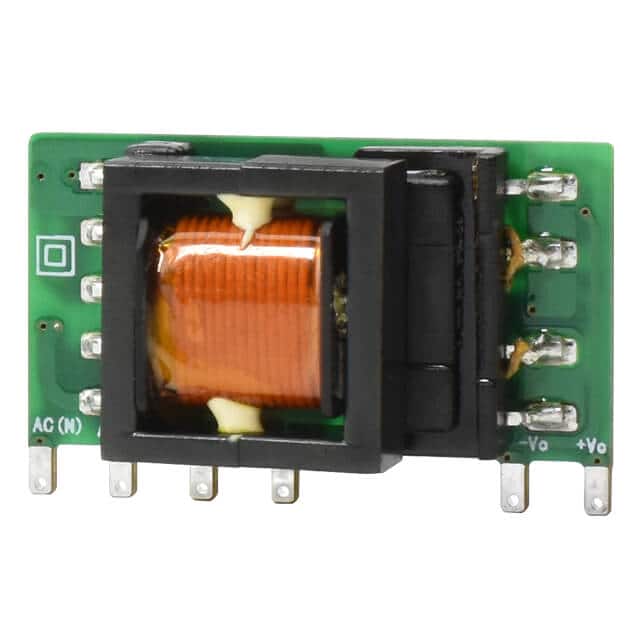

The CUI Inc. PBO-10C-3 is an internal AC-DC power supply designed for various applications, including household appliances and ITE commercial equipment. This open frame converter operates with a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC, offering flexibility in power source selection.
It delivers a stable 3.3Vdc output with a maximum current of 2.0A, providing a total output power of 6.6W. Key electrical specifications include a line regulation of ±1% and a load regulation of ±1.5%. The unit is designed for a wide operating temperature range of -40°C to +85°C, with derating at higher temperatures.
This power supply features a 6-SIP module package and is designed for through-hole mounting. It meets IEC/EN/UL 62368-1 safety standards and is designed to meet 61558 and 60335 safety standards. The MTBF is rated at 1,000,000 hours, indicating reliability for long-term use.
The output voltage is 3.3 Vdc.
The maximum output current is 2.0 A.
The power rating is 6.6 W.
The input voltage range is 85 to 305 VAC.
The operating temperature range is -40°C to +85°C.
The PBO-10C-3 is in a 6-SIP Module package.
