| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

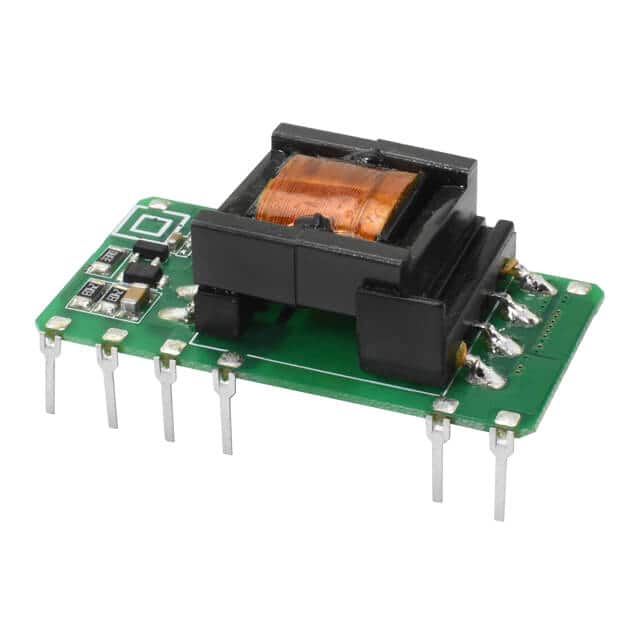

The CUI Inc. PBO-10-5-B is an AC-DC power supply from the PBO-10 series, designed for reliable power conversion. This model provides a single 5V DC output with a maximum current of 2A, delivering up to 10W of power. It operates with a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC, making it suitable for various global applications.
The PBO-10-5-B features an open frame design and is intended for through-hole mounting with a right-angle orientation. It includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-recovery. The unit is designed to meet household appliance and ITE commercial safety certifications, including standards like 60335-1 and 62368-1.
With an operating temperature range of -40°C to 85°C (with derating), this power supply offers flexibility in demanding environments. Its compact dimensions of 44.5mm x 22.5mm x 15.0mm facilitate integration into space-constrained designs. The unit boasts an efficiency of 76% at 230 VAC input and provides robust isolation voltage of 3000 VAC.
85-305 VAC or 100-430 VDC.
5 Vdc at 2 A maximum.
-40°C to 85°C with derating.
16-SIP Module, 6 Leads, Through Hole, Right Angle.
Over voltage protection at 15 Vdc, over current protection at 110%, and short circuit protection with continuous auto-recovery hiccup mode.
3000 Vac input to output for 1 minute.
76% at 230 Vac input.
