| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

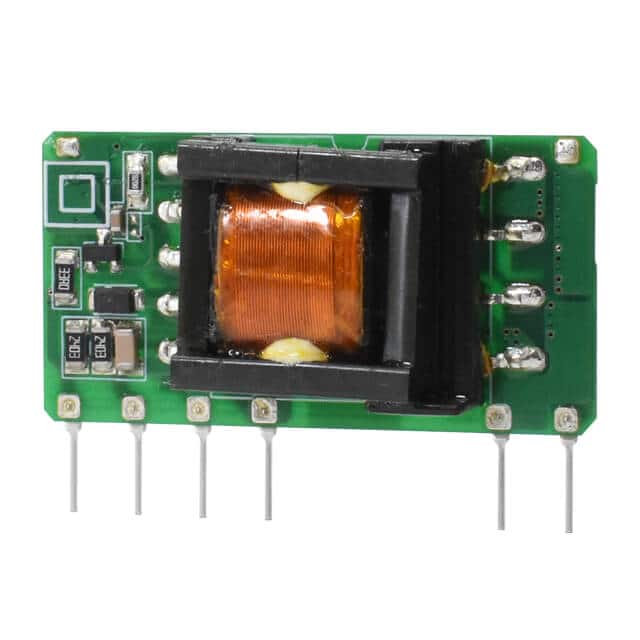

The CUI Inc. PBO-10-3 is an open frame AC/DC converter designed for applications requiring a reliable power supply. It offers a power output of 6.6W and can accept a wide input voltage range from 85 to 305 VAC or 100 to 430 VDC.
Key electrical specifications include an output current of 2A and an efficiency rating of 70%. This converter has a single output and is approved by CE and cURus agencies, adhering to standard numbers 60335-1 and 62368-1.
Mechanically, the PBO-10-3 is designed for through-hole mounting and comes in a 16-SIP module package with 6 leads. Its dimensions are 44.5mm in length, 15.0mm in width, and 24.0mm in height. The operating temperature range is -40°C to 85°C, with derating applied.
This AC/DC converter is suitable for household appliances and ITE commercial applications. It is RoHS3 compliant and has an MSL of 1.
The CUI Inc. PBO-10-3 has a power output of 6.6W.
The PBO-10-3 converter accepts an input voltage range of 85 to 305 VAC or 100 to 430 VDC.
The maximum output current for the PBO-10-3 is 2A.
The PBO-10-3 uses a 16-SIP module package with 6 leads.
The PBO-10-3 is designed for through-hole mounting.
The operating temperature range for the PBO-10-3 is -40°C to 85°C, with derating.
The PBO-10-3 is RoHS3 Compliant.
