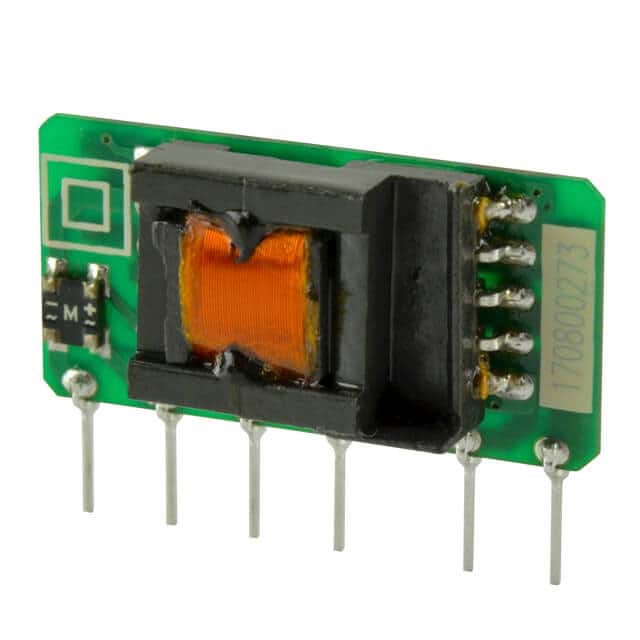

The CUI Inc. PBO-1-S15 is an open-frame AC-DC power supply designed for ITE (Commercial) applications. It delivers a single 15VDC output at up to 67mA, providing a total of 1W of continuous power.
This power supply operates across a broad input voltage range of 85 to 305 VAC, with a frequency range of 47 to 63 Hz. It boasts an efficiency of 69% and features essential protections including over-current and short-circuit protection with auto-recovery.
The PBO-1-S15 is housed in a compact 12-SIP module package and is designed for through-hole mounting. Its dimensions are 35.0mm x 11.0mm x 18.0mm. The unit provides 3,000 Vac isolation between input and output.
Key electrical specifications include a maximum ripple and noise of 120mVp-p, line regulation of ±1.5%, and load regulation of ±3%. The operating temperature range is -40°C to 85°C with derating.
85 to 305 VAC.
15 Vdc at 67mA.
1 W.
69%.
3000 Vac.
-40°C to 85°C with derating.
12-SIP Module, 6 Leads, through hole.
