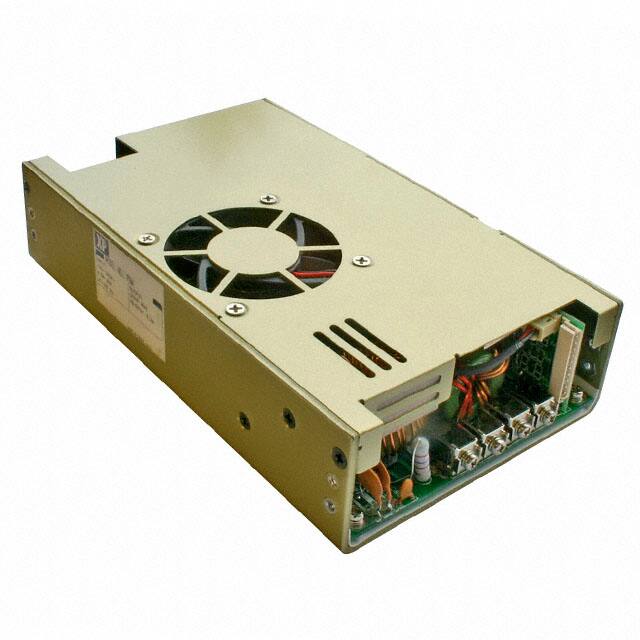

The XP Power PBM300PS12-C is a high-power AC-DC converter designed for demanding applications. It delivers 300 Watts of power with a 12V output voltage, suitable for various industrial and medical equipment.
This converter operates with a universal input voltage range of 90-264 VAC and offers an efficiency of up to 80% maximum. Key features include remote on/off, remote sense capabilities, and power fail detect signals, enhancing system control and monitoring. The unit is designed for chassis mounting and comes in an enclosed form factor.
With dimensions of 190.5mm x 114.3mm x 44.5mm, the PBM300PS12-C is built for robust performance. It meets stringent emissions standards including EN55011 and FCC Class B, and complies with various immunity standards like EN61000-4-2, -4-4, -4-5, and -4-6. The operating temperature range is 0 °C to 70 °C, with derating applied at higher temperatures.
The PBM300PS12-C has a 12V output voltage.
The PBM300PS12-C has a maximum power output of 300W.
The input voltage range is 90-264 VAC.
The maximum efficiency is 80%.
The operating temperature range is 0 °C to 70 °C, with derating.
Yes, it supports remote on/off where logic low or open circuit is ON, and logic high is OFF.
It uses chassis mount.
