| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

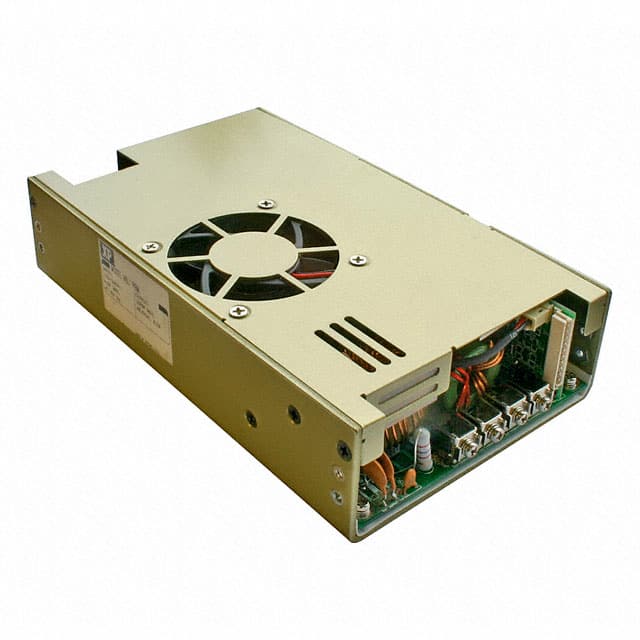

The XP Power PBM200PT02-C is an enclosed AC-DC converter from the PBM200 series, delivering up to 200W of power. It is designed for chassis mounting and features a universal input voltage range of 90-264 VAC.
This converter offers multiple outputs, including 5.1V, +12V, and -12V, making it suitable for various medical applications. Key electrical specifications include an efficiency of 80% maximum, a switching frequency of 100 kHz ±12 kHz, and comprehensive protection features such as overvoltage, overtemperature, overload, and short circuit protection.
Environmental and safety considerations are met with worldwide medical approvals. The operating temperature range is 0°C to 70°C with derating. The unit is built for reliability, indicated by an MTBF of 350 kHrs to MIL-HDBK-217F at +25°C.
Additional features include remote on/off control and power fail detect signals, enhancing its integration into complex systems. Its robust design and medical certifications make it a reliable power solution for demanding applications.
The input voltage range is 90-264 VAC.
The outputs are +5.1V, +12V, and -12V.
The operating temperature range is 0°C to 70°C with derating above 50°C.
It includes overvoltage, overtemperature, overload, and short circuit protection with auto recovery.
Input to output isolation is 4000 VAC, input to ground is 1500 VAC, and output to ground is 500 VAC.
The dimensions are 177.8 mm x 101.6 mm x 38.1 mm (7.00 x 4.00 x 1.50 inches).
