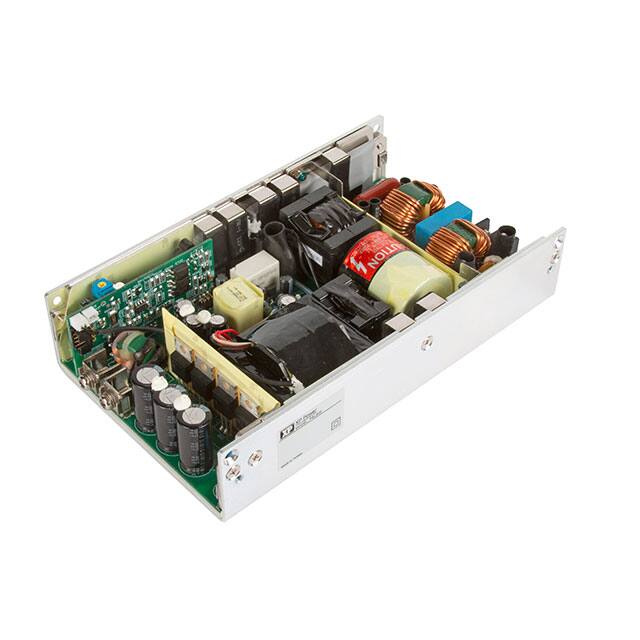

The PBL500PS36B is a Class II AC-DC switching power supply from XP Power, part of the PBL500 series. It delivers 36V output voltage with a current rating of 8.94A, providing 322W of continuous power under convection cooling and up to 500W with forced air cooling.
This open frame unit is designed for chassis mounting and features a high efficiency of 90%. It includes features such as Power Factor Correction (PFC), Remote On/Off, Remote Sense, and a Standby Output. The power supply is built on a U channel for mechanical support and heat sinking.
Designed for demanding applications, the PBL500PS36B is suitable for medical applications, operating at altitudes up to 5000 meters. It has an isolation voltage of 4kV and is approved by CB, TUV, and UL. The operating temperature range is -10°C to 70°C with derating.
Key specifications include dimensions of 180.3 x 101.6 x 39.6mm, a ripple and noise level of 360mV, and a single output. It complies with standard 60601-1.
The output voltage is 36V.
The maximum output current is 8.94A.
The power rating is 322W with convection cooling and up to 500W with forced air cooling.
The operating temperature range is -10°C to 70°C with derating.
It supports chassis mounting.
It meets standard 60601-1 and is approved by CB, TUV, and UL.
The dimensions are 180.3 x 101.6 x 39.6mm.
