| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

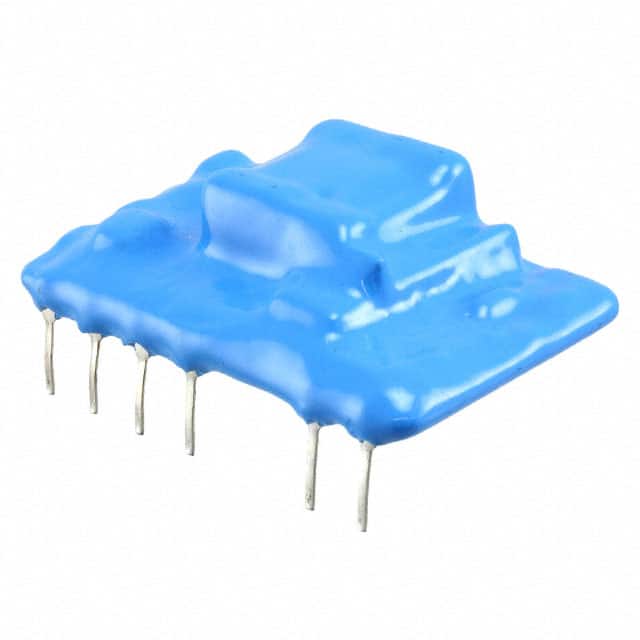

The CUI Inc. PBK-5-9-B is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 9V with a current rating of 560mA, delivering a total power of 5W.
This converter operates with a universal input voltage range of 85 to 264 VAC or 100 to 400 VDC, offering flexibility in power sourcing. It boasts an efficiency of 72% and includes features such as universal input. The operating temperature range is from -25°C to 85°C, with derating applied.
The PBK-5-9-B is housed in a 14-SIP Module, 6 Leads package and utilizes Through Hole mounting. It is approved by cULus and complies with standard 60950-1. The dimensions are 42.0mm in length, 25.0mm in width, and 11.0mm in height.
85 ~ 264 VAC or 100 ~ 400 VDC.
14-SIP Module, 6 Leads.
-25°C to 85°C with derating.
9V at 560mA.
cULus approval per standard 60950-1.
42.0mm x 25.0mm x 11.0mm.
Through Hole.
