| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

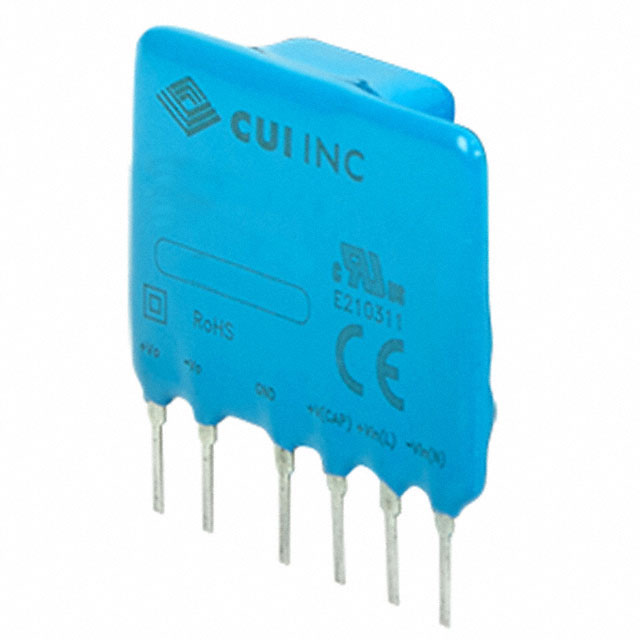

The CUI Inc. PBK-5-15 is an enclosed AC/DC converter with a power rating of 5W. It accepts a wide input voltage range of 85 to 264 VAC or 100 to 400 VDC, making it suitable for various global applications.
This converter features a single output and provides 340mA of current. Its efficiency is rated at 75%, and it operates within a temperature range of -25°C to 85°C with derating. The unit is designed for Through Hole mounting and comes in a 14-SIP module package with 6 leads.
Key specifications include universal input, CE and cULus approvals, and compliance with standard 60950-1. The dimensions are 42.0mm in length, 11.0mm in width, and 27.0mm in height. This converter is intended for ITE (Commercial) applications.
85 to 264 VAC and 100 to 400 VDC.
340mA.
-25°C to 85°C with derating.
14-SIP Module, 6 Leads.
Through Hole.
75%.
CE, cULus.
