Mfr Part #:

PBC36SAAN

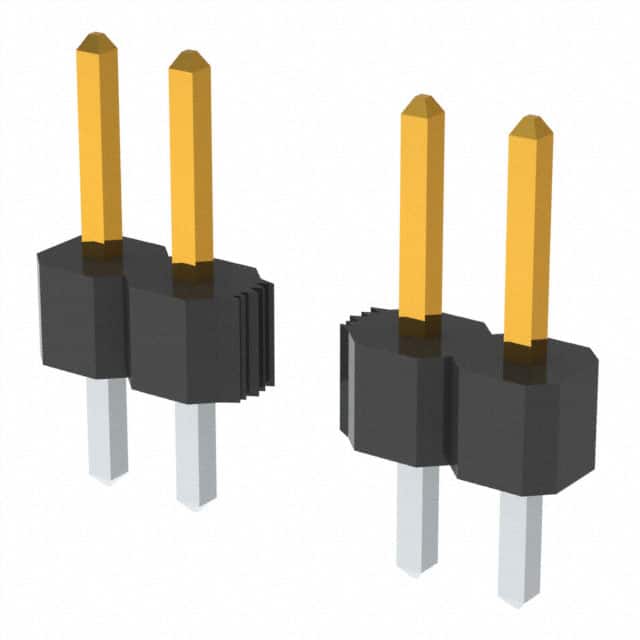

CONN HEADER VERT 36POS 2.54MM. Single row, through hole, male pin header with 2.54mm pitch and tin plated phosphor bronze contacts.

✓ Total Stock: 580 pcs

$ Price Range: $1.13 - $2.07

PBC36SAAN Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	580 pcs On Request	580 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PBC36SAAN Description

Short technical summary and product information.

The PBC36SAAN is a 36-position single row male pin header from Sullins Connector Solutions. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The unshrouded header uses a push-pull fastening type and is suitable for board-to-board or cable applications.

The contacts are made of phosphor bronze with a tin finish (0.25µm thickness). The contact length is 5.84mm (0.230") with an overall contact length of 11.43mm (0.450"). The insulation height is 2.54mm (0.100") and the insulator is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.

This header is rated for 3A current and operates over a temperature range of -65°C to 125°C. All 36 positions are loaded. The breakaway design allows the header to be cut to custom lengths if needed.

PBC36SAAN Quick Information

Product Type: Header, Male Pin

Series: PBC

Canonical Name: Sullins Connector Solutions PBC36SAAN — 36 Position Single Row Male Pin Header, Through Hole, 2.54mm Pitch

Subcategory: Breakaway Header

PBC36SAAN Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

PBC36SAAN Estimated Pricing

Qty	Low	High
1+	$2.07	$2.07
50+	$1.57	$1.57
100+	$1.50	$1.50
500+	$1.33	$1.33
1,000+	$1.27	$1.27
5,000+	$1.13	$1.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

PBC36SAAN Features

36 position single row male pin header.
2.54mm (0.100") pitch for standard spacing.
Through hole mounting with solder termination.
Tin plated phosphor bronze contacts.
Rated for 3A continuous current.

PBC36SAAN Applications

Board-to-board interconnection in electronic assemblies.
Cable-to-board connections in industrial equipment.
Prototyping and breakaway header applications.
General purpose signal and low power connections.

PBC36SAAN FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the PBC36SAAN have?

36 positions, all loaded, in a single row.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

3A.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-65°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with a tin finish (0.25µm).

Is the header shrouded?

No, it is unshrouded with a push-pull fastening type.

Category	Headers, Male Pins
Manufacturer Name	Sullins Connector Solutions
Connector Type	Header, Breakaway
Contact Finish	Tin
Contact Finish Thickness	0.25µm (10.0µin)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polybutylene Terephthalate (PBT)
Lead Spacing	2.54 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 125°C
Overall Contact Length	11.43mm (0.450")
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Storage Temperature	-65°C ~ 125°C
Style	Board to Board or Cable
Termination	Solder
