Mfr Part #:

PBC34SGBN

Name: PBC34SGBN
Brand: Sullins Connector Solutions
SKU: PBC34SGBN

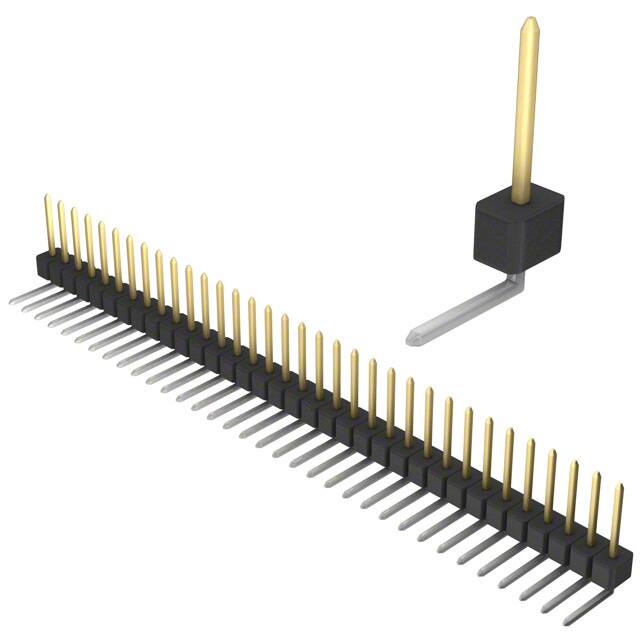

CONN HEADER R/A 34POS 2.54MM

Stock on Request

PBC34SGBN Description

Short technical summary and product information.

CONN HEADER R/A 34POS 2.54MM

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

PBC34SGAN

Sullins Connector Solutions

CONN HEADER R/A 34POS 2.54MM

Category	Headers, Male Pins
Manufacturer Name	Sullins Connector Solutions
Connector Type	Header, Breakaway
Contact Finish	Tin
Contact Finish Thickness	10.0碌in (0.25碌m)
Contact Length	0.318" (8.08mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
