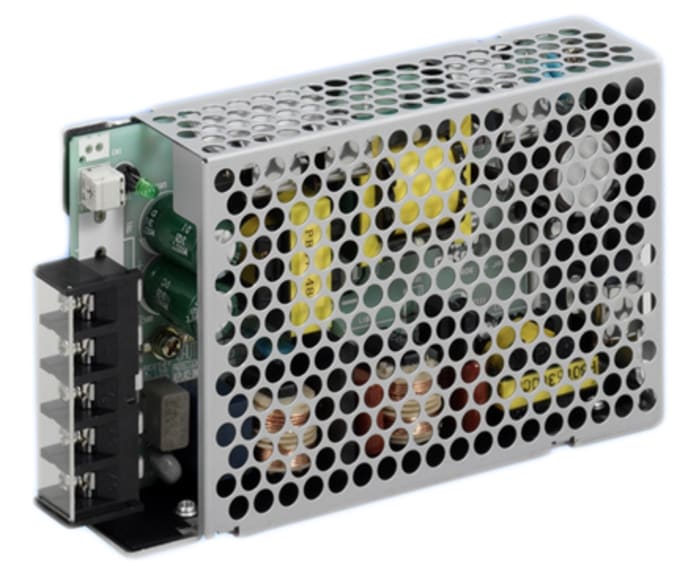

The Cosel PBA75F-9-N is a versatile AC/DC power supply from the PBA series, designed for reliable power conversion. It offers a single output of 9V with a maximum current of 8.4A, providing a total power of 75.6W. This enclosed unit is suitable for chassis mounting, making it adaptable for various industrial and commercial applications.
The power supply accepts a wide universal input voltage range, from 85V AC to 264V AC, ensuring compatibility across different power grids. It operates efficiently with an efficiency rating of up to 82% and maintains performance within an operating temperature range of -10°C to 71°C, with derating applied. The PBA75F-9-N includes essential protections such as overcurrent and overvoltage protection.
Compliance with international standards is a key feature, including CE, cURus, and TUV approvals. It also meets EMI standards like FCC-B and CISPR22-B, and complies with harmonic attenuator requirements per IEC61000-3-2. The unit is designed for applications in ITE (Commercial) environments, offering robust and safe power conversion.
Key specifications include a 3kV isolation voltage (Input-Output), 2kV (Input-FG), and 500V (Output-FG). The dimensions are 134.9mm in length, 32.0mm in width, and 82.0mm in height. This power supply is built for demanding applications requiring stable and efficient power.
The PBA75F-9-N provides a nominal output voltage of 9V and a nominal output current of 8.4A.
The AC input range is 85V to 264V AC, and the DC input range is 110V to 370V DC.
The operating temperature range is -10°C to +71°C with derating.
It includes overcurrent protection (works over 105% of rated current with automatic recovery) and overvoltage protection (30V to 37V).
The PBA75F-9-N is a chassis mount device.
The dimensions are 134.9mm (5.31 inches) in length, 32.0mm (1.26 inches) in width, and 82.0mm (3.23 inches) in height.
It complies with FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
