| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

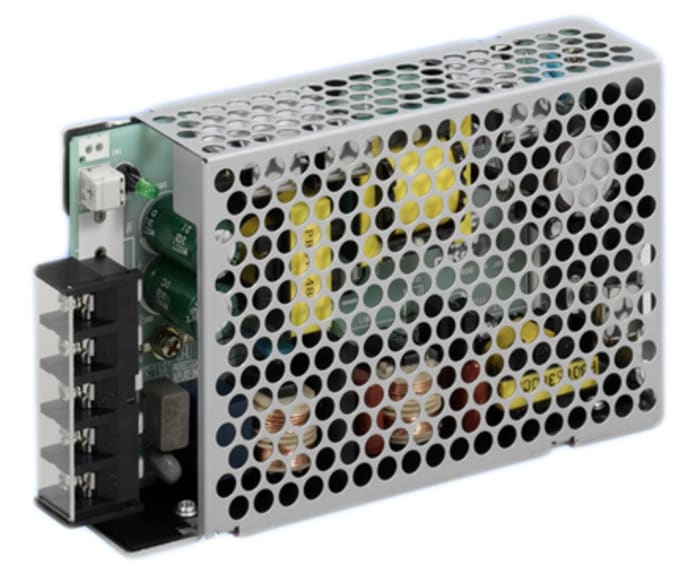

The Cosel PBA75F-15-N is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a stable 15V DC output at a maximum current of 5A, providing a total power of 75W. This unit features a universal input voltage range from 85 to 264 VAC, making it suitable for global use. The power supply boasts an efficiency of 84% and includes features such as overcurrent and overvoltage protection.
Mounting is achieved via a chassis mount configuration. The PBA75F-15-N complies with various safety and EMI standards, including CE, cURus, TUV, and meets EMI requirements like FCC Part15 Class B. It also incorporates a harmonic attenuator compliant with IEC61000-3-2.
This series is known for being lightweight and compact, offering significant volume reduction compared to conventional products. The PBA series is suitable for applications in automated machinery and semiconductor equipment.
The output voltage is 15V DC.
The maximum output current is 5A.
The power rating is 75W.
The input voltage range is 85-264 VAC.
The efficiency is 84%.
Approvals include CE, cURus, and TUV.
The operating temperature range is -10°C to 71°C.
